How to Package Moisture- and Light-Sensitive Capsules: Barrier, Desiccant and Stability Testing Guide

Pharmaceutical capsules can be surprisingly delicate. Even a tiny bit of moisture or light can ruin their potency long before the expiration date. A humidity swing in storage, a sunny window on the shelf, or a leaky seal on the pack can cause gelatin or HPMC capsule shells to harden or soften unexpectedly, altering release or bioavailability. As Jinlu notes, “even small amounts of humidity can compromise product stability, reduce efficacy, and shorten shelf life long before visible signs of damage appear.”. In other words, moisture control isn’t just a packaging issue – it’s a core quality requirement.

For manufacturers and packagers, the key questions are: How sensitive is the capsule product? Does it need an ultra-high barrier pack (like Alu-Alu foil), or is a standard PVC blister sufficient? Do we add desiccants in the bottle, or rely on the film alone? And crucially, how will we test stability to ensure the chosen pack actually works? In this guide we walk through each step of the decision process, covering barrier materials, desiccant use, light protection, and stability testing. Our goal is to give you a practical roadmap – from risk assessment to packaging equipment – so you can confidently protect moisture- or light-sensitive capsules and meet both regulatory and production needs.

Why Moisture- and Light-Sensitive Capsules Need Special Packaging

Capsule formulations are often sensitive to environmental factors. Moisture can cause tablet and capsule shells to absorb water, making them swell, soften or even crack. As one industry guide notes, “pills can soften, capsule shells can absorb moisture, and many medications may become unstable before their expiration date if the packaging fails to function properly.” A humid environment can trigger chemical breakdown of the active ingredients. Light (especially UV) can also trigger photodegradation of certain APIs. Proper packaging acts like a protective shield: it keeps humidity and oxygen at bay and blocks damaging light. For example, amber glass provides excellent UV protection, and aluminum foil-based packs block nearly all light. The choice of barrier material depends on the capsule type (gelatin, HPMC, softgel), the fill properties (dry powder vs oily liquid), and the intended shelf-life.

How Moisture Affects Capsules and Fillers

Capsule shells (gelatin or HPMC) and their drug fills react to humidity. In dry air, capsules lose moisture and become brittle; in humid air, they swell and stick. For example, a hygroscopic powder inside a gelatin shell can draw water from the shell until the shell’s moisture drops below normal, causing cracks. Conversely, high humidity softens the shell and may cause caps and bodies to deform or stick during filling. Gelatin shells (13–16% initial moisture) are particularly sensitive, whereas HPMC or pullulan shells start at 3–8% moisture and tolerate humidity swings better. In practice, we limit humidity shifts in storage (USP notes gelatin, HPMC and pullulan all contain water) and use barrier packaging to maintain equilibrium.

How Light Affects Capsule Stability

Many drugs degrade under UV or even visible light. Light can oxidize actives or fade dyes, so “light-sensitive” APIs (like some vitamins, steroids or dyes) demand light-blocking packaging. Regulatory guidance (ICH Q1B) calls for photostability testing of the finished product. In plain terms, if a drug is known to be photolabile, put it in an amber or opaque container. For example, amber PET or glass bottles filter out much of the UV/blue spectrum. Aluminum-based packaging (blister foil or foil pouches) blocks essentially all light. When evaluating risk, ask “will light exposure shorten shelf life?” If yes, always use opaque or foil barrier packaging.

How to Identify Capsule Stability Risks Before Choosing Packaging

Before selecting packaging, assess the key risks:

• Moisture sensitivity: How hygroscopic are the shell and fill? (Do they gain/lose water easily?) Risky ingredients include effervescent compounds, hygroscopic APIs, or salts. If the product absorbs even a small amount of moisture, plan for a strong barrier or desiccant.
• Oxygen sensitivity: Are any components prone to oxidation? (Oils, unsaturated fats, vitamins). If so, consider oxygen barriers (PVDC, foil) or oxygen scavengers in bottles.
• Light sensitivity: Are any ingredients known to be photosensitive? (Some dyes, vitamins or hormones). If yes, prioritize opaque or UV-blocking packaging.

Also define your shelf-life and storage conditions. For example, if you aim for 24 months at 25°C/60%RH, you may need a tighter barrier than for a 12-month stability under controlled humidity. Remember, regulatory guidance (ICH Q1A(R2)) requires stability testing on the final packaged product. So choose packaging that can demonstrably maintain your intended label claim.

To compare options, here’s a Packaging Materials Comparison (values approximate):

Notes: A 250 μm PVC film has about 3.0 g/m²/day WVTR, whereas heavy PVC/PVDC laminates can drop below 0.3 g/m²/day. PCTFE (Aclar) liners are used precisely because they act as “moisture barriers in pharmaceutical blister packaging”. Aluminum foil packs (Alu-Alu) stop moisture completely, at the expense of visibility. Choose the material that meets your moisture, oxygen, and light requirements at a reasonable cost.

Desiccant vs Barrier Packaging: Do You Need Both?

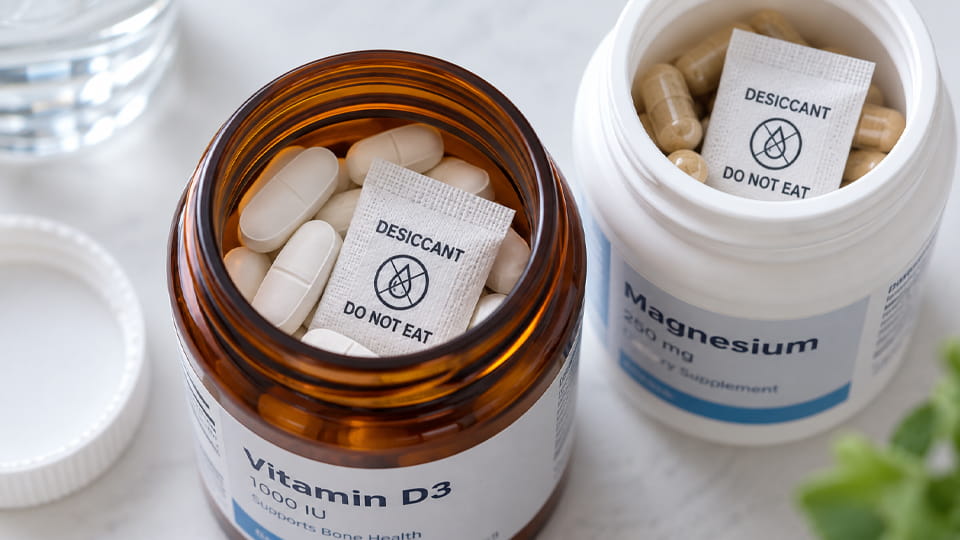

A high-barrier package slows moisture ingress, but sometimes adding a desiccant packet is still useful. Desiccants (silica gel, clay, etc.) actively absorb humidity in the container’s headspace. Use desiccant when:

• The product is very hygroscopic and even small humidity needs buffering.
• The container is large or not perfectly sealed.
• Long shelf life or tropical storage makes extra moisture control prudent.

However, desiccants must be sized by calculation, not guesswork. An oversized desiccant can over-dry the package and draw moisture out of the capsule shell, making it brittle. To determine capacity, estimate how much water can enter the package over time (using the package’s WVTR, ambient RH and shelf life) and choose a desiccant that absorbs that amount. For example, combine product moisture sensitivity, packaging permeability and storage humidity to compute total grams of water ingress. Then pick silica gel or molecular sieves with that capacity.

In summary: Barrier material and desiccant serve different roles. A strong barrier material blocks outside moisture; a desiccant “mop up” any moisture that does get in or was present at packing. Many capsule-bottle systems use one packet per bottle (sized to the headspace volume) as standard practice. But always validate with stability tests – if test batches show moisture creep, increase desiccant; if they show excessive drying, dial it back. Remember, more desiccant is not always better.

How to Protect Light-Sensitive Capsules During Packaging

Light-sensitive capsules present a somewhat different challenge. Here, the goal is to exclude light as much as possible. The packaging should prevent UV and visible light from reaching the product. Common strategies include:

• Opaque bottles: Amber or amber-tinted glass is the classic solution for protecting capsules and liquids from UV. Many vitamins and ocular drugs use amber glass bottles. Note that even amber will let some visible light through, so for very sensitive products, consider fully opaque secondary cartons or foil envelopes as well.
• Aluminum-based blisters: As noted earlier, Alu-Alu blister packs are 100% opaque metal, blocking all light. Even an Alu-PVC blister (PVC front, alu lid) stops light from one side. These are ideal for light-sensitive capsules like photolabile drugs or retinal supplements.
• Opaque plastic bottles: Some HDPE bottles are colored (blue, amber, etc.) to filter light. This can be used if a sealed bottle format is needed. Check the actual transmission spectrum to ensure it meets your protection needs.
• Secondary shielding: Some companies put capsules into foil sachets or overwrap cartons to add a layer of light barrier. This is common for short-term light sensitivity issues.
• Additives: In manufacturing, one can sometimes add UV stabilizers or opacifiers to the capsule shell itself, but this is less common for medicines.

ICH Q1B emphasizes testing samples under forced light exposure, ideally in the “immediate container or as marketed”. If results show significant photodegradation, stronger protection is needed. For example, if testing shows that transparent blister is insufficient, the drug may need to be shipped in foil packets instead.

In practice, make sure your packaging design explicitly addresses the light sensitivity. If you use an amber glass bottle, it’s wise to still include a warning label like “Protect from light” and perhaps ship inside a box. If using blisters, an Alu-Alu version automatically solves the problem.

When writing stability protocols, remember to include photostability testing under normal and intense light. Often this means comparing the drug stored in clear vs. tinted packaging. The results will guide whether your chosen pack is adequate or if additional filtering measures are needed.

How to Validate Capsule Packaging Through Stability Testing (ICH Q1A/Q1B Alignment)

You must validate your packaging with stability studies in the final container. Per ICH Q1A(R2), this typically means long-term testing at 25°C/60%RH (12–24+ months) and accelerated at 40°C/75%RH (6 months). For light-sensitive products, add a photostability arm as described above. At each timepoint, examine:

• Assay and degradation products – chemical potency after storage.
• Moisture content – e.g. by loss-on-drying or Karl Fischer for shells/fill. Rising moisture can indicate barrier failure.
• Physical properties – e.g. tablet hardness, disintegration, or softgel flexibility. High humidity can soften shells or tablets, affecting release.
• Appearance – look for discoloration, moisture condensation, or seal failures.

Below is an example stability matrix for 4 packaging options. Adjust storage times to match your intended shelf-life.

Interpretation: According to ICH Q1A, if accelerated conditions cause unacceptable degradation, the product will likely degrade somewhat at 25°C too, which might shorten shelf-life. Photostability failures indicate a need for more protection. Always aim that the final chosen pack passes all relevant tests.

Besides chemical assays, perform package integrity testing. For blisters, you might do a vacuum decay or dye ingress test. For bottles, test closures (e.g. check foil seals on caps). This confirms the container-closure system is intact.

How to Choose Packaging Equipment for Sensitive Capsules

All the foregoing decisions mean little unless your packaging line can reliably implement them. Here we touch on equipment considerations on a high level; for specifics, Jinlu’s solutions can supply the needed machinery.

Blister Packing Machines

For high-barrier blister packs (PVC/PVDC, PCTFE, or cold-form foil), you need a thermoforming or cold-form blister machine capable of handling the chosen material. Key points:

• Forming station: The oven/dies must be programmable to suit PVC, PVDC, or PCTFE. PVDC-coated films often require careful heat control. Cold-form foil machines (for Alu-Alu) use mechanical stamping presses with high pressure instead of heat.
• Sealing station: Heat-sealing parameters differ for each material. Alu-Alu needs special tooling; standard thermoforming machines like Jinlu’s DPP series blister machines have models for both Alu-PVC and Alu-Alu (e.g. DPP-270max Automatic Blister Packing Machine can do Alu-Alu at 11,200 blisters/hr).
• Vacuum/pressure forming: For deep capsules or tablets, ensure the machine can pull a strong vacuum/pressure to shape the foil without tearing.
• Inspection: Since sensitive products often go into blister packs, it helps to have fill-level inspection. For opaque packs (Alu-Alu), X-ray or vision systems may be needed. Jinlu machines often integrate inspection after sealing.
• Format flexibility: The line should handle the capsule size and blister cavity shape you need, as well as maintain sterile-ish conditions if required.

Capsule Bottling (Counting/Filling) Lines

A bottle packaging line for capsules typically includes: unscrambler, counting machine (to drop capsules into bottles), desiccant inserter (if used), capping machine, induction sealer, labeler, etc. Things to consider:

• Desiccant insertion: If using desiccant, the inserter must be compatible with the desiccant type and shape. For example, Jinlu offers automatic desiccant inserters that feed silica gel sachets or tablets into bottles.
• Sealing integrity: The capping machine, often with induction sealing, must create an airtight seal. Sensors can check torque on screw caps or presence of foil liner. Every cap should be inspected for correct seal.
• Throughput: Match the line speed to your batch sizes. Modern lines can run hundreds of bottles per minute. For example, some suppliers note that automated lines connect unscramblers, desiccant inserters, capping, foil-sealing and labeling in one flow.
• Material handling: The line should be validated for your bottle type (HDPE, PET, glass). Amber glass, if used, usually requires a gentle unsnarling system (glass is heavier).
• Environmental controls: Often the counting/filling area will be in a cleanroom or at least a controlled RH room. This prevents ambient moisture spikes during filling.
• Validation and testing: The equipment should support in-process testing. For instance, a leak detector can test seal integrity post-induction. Inline CCD cameras or metal detectors ensure each bottle is filled with exactly N capsules.

Jinlu’s bottle line guide highlights these steps. A typical capsule line is fully automatic from unscrambling to capping. One supplier notes a counting-filling line “can be connected with bottle unscrambler, desiccant inserter, capping machine, aluminum foil sealing machine and labeling machine”, covering all the key functions. If you work with Jinlu or other OEMs, specify your barrier pack scheme so they can recommend the appropriate machines and configurations (for example, recommending an induction sealer with a heated platen for Alu-Alu bottle lids, or a specialized track for sachet insertion).

Seal Integrity and QC

No matter the format, seal integrity is non-negotiable for moisture control. Modern lines often include automated leak detection. For blisters, pressure decay or tracer dye tests might be done on samples. For bottles, vacuum leak testers can inspect every bottle. Additionally, jar vacuum sensors can detect an improperly sealed bottle at the induction sealer.

Package line QC is part of ensuring the barrier will perform as intended. Proper calibration of machines (e.g. sealing temperature, pressure, dwell time) is critical. Jinlu’s blister machines, for instance, allow precise control of oven zones to match PVDC film specs. Work with your pharmaceutical machine vendor to validate these settings during machine qualification.

In summary, choose equipment that is designed for high-barrier packaging and capsule filling, and plan for inspection and control of sealing. With the right machines in place, you’ll reliably produce capsule packages that meet the stringent requirements of moisture- and light-sensitive formulations.

A Practical Decision Tree for Capsule Packaging Selection

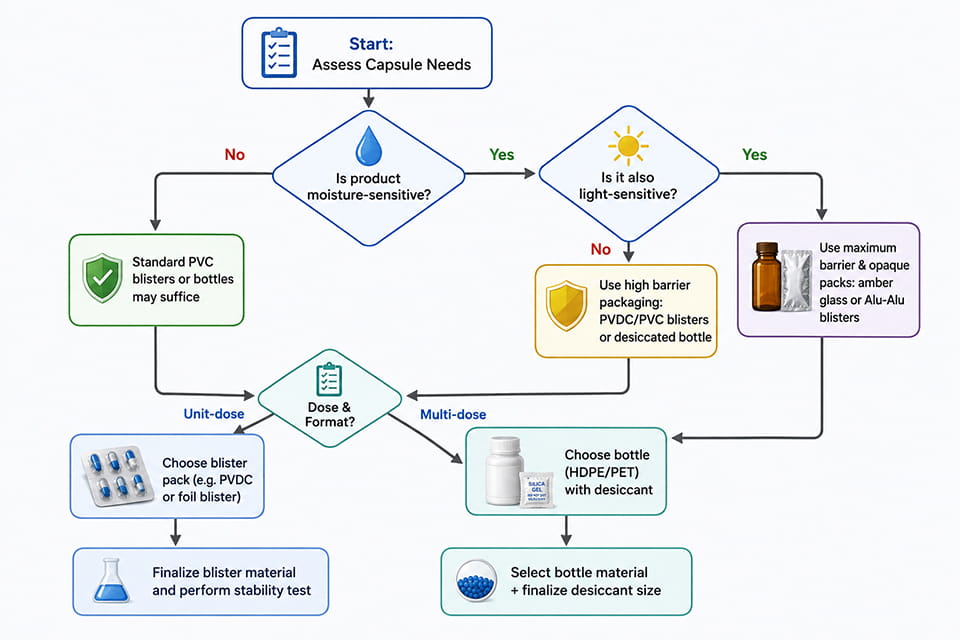

Below is a simplified decision flowchart for choosing packaging. It highlights the major considerations – adjust as needed for your product:

This flowchart captures key choices. If capsules are moisture- or light-sensitive, lean toward the tightest barriers (e.g. aluminum blisters, amber bottles). If they are non-sensitive, simpler packaging (standard PVC blisters or HDPE bottles) can work. Also consider format: single-dose blisters vs multi-dose bottles. Finally, always validate with stability studies and make the final selection based on empirical data.

Conclusion

Moisture- and light-sensitive capsules demand a data-driven packaging strategy. Start by understanding your product’s risks – quantify how humidity and light affect it. Then select a primary barrier (blister film or bottle/closure) at the level needed, and consider a desiccant if any moisture is likely to slip through. Critically, validate your choice by stability testing the product in the actual final package. If the data show your capsules remain within spec through the desired shelf life, you’ve succeeded.

At Jinlu Packing, we supply both the knowledge and the machines to achieve this. Our high-speed blister machines (including models for Alu-Alu packs) and capsule bottling lines (with desiccant inserters and induction sealers) are designed for sensitive formulations. We encourage you to leverage our experience: request a line trial or FAT, and examine real samples (seal integrity tests, WVTR reports, etc.) for confidence before full production. Protecting your product’s stability is as much an art as a science, but with the right materials, equipment, and testing, you’ll ensure those capsules stay potent and effective through delivery to the patient. Contact Jinlu today to discuss how our packaging solutions can meet your formulation’s unique needs.

FAQs About Moisture-Sensitive Capsule Packaging

References：
1.Container Closure Systems for Packaging Human Drugs and Biologics —— U.S. Food and Drug Administration
2.Stability Testing of New Drug Substances and Products —— ICH Q1A(R2)
3.Stability Testing of Active Pharmaceutical Ingredients and Finished Pharmaceutical Products —— WHO
4.A study on gelatin capsule brittleness: moisture tranfer between the capsule shell and its content —— PubMed
5.Moisture sorption and desorption properties of gelatin, HPMC and pullulan hard capsules —— PubMed
6.Enhancing the Dissolution Stability of Hard Gelatin Capsules Using Activated Carbon as a Packaging Component —— ScienceDirect
