Delayed Release vs Enteric Coated Capsules: Key Differences, Manufacturing Routes & How to Choose

Delayed-release capsules and enteric-coated capsules are related but not identical. “Delayed-release” is a broad pharmaceutical category for any design that postpones drug release, while “enteric-coated” refers specifically to a pH-sensitive polymer barrier. In practice, all enteric-coated capsules are delayed-release, but delayed-release products can use other triggers (time, enzymes, etc.). Manufacturers can achieve delayed release by:

1. coating a filled capsule with enteric polymer.
2. using a ready-to-fill enteric-resistant capsule shell.
3. filling capsules with enteric-coated pellets or granules.
4. combining immediate- and delayed-release particles.

Each route has trade-offs in equipment, flexibility, and complexity. For example, enteric-coated pellets allow multiple release phases in one capsule, but require precise pellet dosing on the capsule filling machine. Key production considerations include capsule shell compatibility (gelatin vs HPMC), coating adhesion, and fill equipment settings. We compare each approach below to help you select the right strategy for your formulation.

What Are Delayed-Release, Extended-Release and Enteric-Coated Capsules?

“Delayed-release (DR)” is a general term for any oral dosage form engineered to hold its contents for a period after ingestion. In other words, it controls when the drug is released. For example, an HPMC (hydroxypropyl methylcellulose) capsule with an extra-thick wall may dissolve more slowly, delaying the release of its API. The goal is often to reduce stomach irritation or target delivery to a later point in the GI tract.

An enteric-coated (Acid-Resistant) capsule is one specific way to achieve delayed release. “Enteric” means intestine. These capsules are given a specialized polymer coating that is insoluble in stomach acid but soluble at higher pH (the small intestine). In practice, the capsule stays intact in the stomach (pH ~1.5–3.5) and only dissolves when it reaches the small intestine (pH ~6.0–7.5). This precisely controls where the drug releases. Enteric coatings protect acid-labile drugs (e.g. PPIs like omeprazole) and also protect the stomach lining from irritants (e.g. aspirin).

Extended-Release (ER) Capsules: Forms that release drug slowly over an extended period (hours) to maintain steady blood levels. Not the same as delayed release. ER systems (hydrophilic matrices, osmotic pumps, etc.) control the rate of release from the moment of ingestion, rather than imposing an initial lag. For example, an ER capsule might gradually release drug over 8–24 hours. Delayed release simply imposes a delay, whereas extended release modulates release rate (or both).

In short, all enteric-coated capsules are delayed-release, but not all delayed-release capsules are enteric-coated. Delayed-release covers any mechanism (thicker shell, polymer matrix, beads, etc.) that shifts the release profile. Enteric-coated is the most common method, using pH-dependent coatings. Both ensure drugs aren’t released immediately, but delayed-release focuses on timing, while enteric-coated focuses on bypassing the stomach.

Key Differences at a Glance

The table below summarizes the major differences between delayed-release and enteric-coated capsules:

This table captures the core contrasts. Delayed-release “postpones” release based on material and thickness, while enteric capsules add a chemical barrier that only dissolves at intestinal pH. In practical terms, use delayed-release if the goal is timing (e.g. reduce reflux or provide convenience) and use enteric-coated if the API is acid-sensitive or targeted to the intestines.

How Delayed-Release and Enteric Coatings Work

At a mechanistic level, delayed-release capsules often rely on the capsule shell itself and fillers:

• Delayed-Release Capsules: These commonly use HPMC (plant-derived) capsule shells that dissolve more slowly than gelatin. HPMC is a bulky polymer, so an HPMC capsule (especially larger sizes or multiple layers) inherently gives a lag time. In some cases, delayed release can also be achieved by filling a capsule with pellets or granules that are coated with slow-release polymers, or by formulating the capsule with release-slowing excipients (e.g. hydrophobic waxes). Essentially, the “trigger” can be time-based or material-based. HPMC shells that extend gastric residence, delaying release of ingredients like fish oils or botanicals.
• Enteric Coating Technology: In contrast, an enteric-coated capsule uses a pH-sensitive polymer film. Enteric polymers (like cellulose acetate phthalate, HPMC phthalate, or methacrylate copolymers such as Eudragit L/S) are chosen because they won’t dissolve in stomach acid but will dissolve in the higher pH of the duodenum. In manufacturing, either the capsule shell itself is made from or lined with these polymers, or a conventional capsule is spray-coated with an enteric polymer solution/dry powder. The coating typically contains plasticizers (e.g. triethyl citrate, PEG) to make it flexible.

The science: gastric pH (~1–3) keeps the film intact (no release), but once the capsule passes to the small intestine (pH ~6–7), the enteric film swells and dissolves, liberating the drug. For instance, omeprazole is formulated as a delayed-release capsule with enteric coating; without the coating it would be destroyed by stomach acid.

In summary, delayed-release encapsulates the broad concept (“hold the drug back”), whereas enteric coating is the technology to achieve that for stomach-sensitive cases.

Common APIs and Applications

Delayed-Release Capsule Examples: Delayed-release capsules are often used for ingredients that benefit from a lag but are not damaged by acid. Common examples include omega-3 oils or certain botanicals which can cause reflux if released immediately. Some probiotics (acid-tolerant strains) or peptides fall here if you only need to reduce dose frequency or stomach upset. Essentially, if the API irritates the stomach (like an NSAID) but isn’t itself acid-sensitive, delayed-release can improve tolerance.

Enteric-Coated Capsule Examples: Enteric-coated capsules are chosen for acid-labile drugs and targeted GI delivery. Classic examples: proton-pump inhibitors (omeprazole, esomeprazole) and other stomach-acid-sensitive drugs, digestive enzymes (e.g. pancrelipase for cystic fibrosis), and probiotics (so the bacteria survive to the gut). They’re also used for vitamins/herbals when needed (e.g. SAMe supplements) and some rectally-targeted medications. Many OTC aspirin or ibuprofen products have “enteric-coated” versions to protect the stomach lining. The key is: if your API or ingredient is inactivated or irritating in acid, enteric is the way to go.

Materials, Excipients and Polymers

• Capsule Shell Materials: Hard capsules are typically gelatin or HPMC. For delayed-release, HPMC shells (vegetarian) are common because they dissolve slower and can be plant-derived. Enteric capsules may use standard shells but must be coated with enteric polymer, or use specially formulated shells. Some companies also produce ready-to-fill enteric capsules to skip the coating step.
• Enteric Polymers: Traditional polymers include cellulose acetate phthalate (CAP) and various cellulose esters (HPMCP, HPMCAS). Methacrylate copolymers (Eudragit L, S, L30D, etc.) are widely used and can dissolve around pH 5.5–7.0. Natural resins like shellac, zein, and alginates also provide acid resistance, often in nutraceuticals.
• Plasticizers: Enteric films need plasticizers like triethyl citrate, glycerin, or polyethylene glycol to avoid cracking. Hydrophobic plasticizers (e.g. TEC, acetyl tributyl citrate) help maintain acid resistance, while hydrophilic ones can inadvertently increase water uptake.
• Other Fill Excipients: The capsule fill (drug + excipients) may include fillers (microcrystalline cellulose, lactose), lubricants (magnesium stearate), flow aids (colloidal silica), and disintegrants (crospovidone) in any capsule. For enteric capsules, ensure excipients are compatible with acid–alkaline transitions.

Four Manufacturing Routes for Delayed-Release Capsules

Pharmaceutical manufacturers have several routes to create a delayed-release capsule. Below is an overview of four common approaches, from most to least traditional. Each route has a different process flow, equipment need, and flexibility:

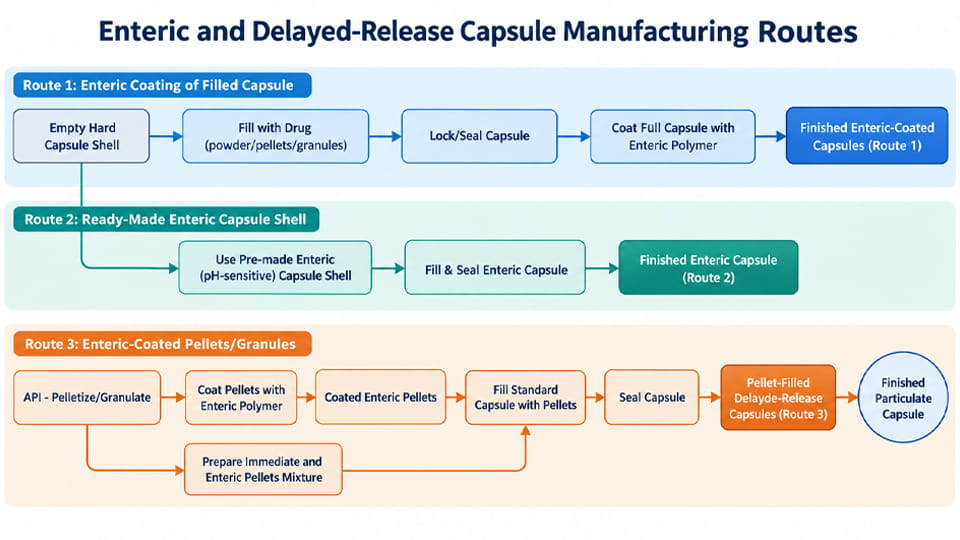

Figure: Four main routes to achieve delayed-release capsules. Route 1 coats the filled capsule; Route 2 uses a ready-to-fill enteric shell; Route 3 fills with enteric-coated pellets; Route 4 (not shown) is a combination of pellets with other formats.

• Route 1: Enteric-Coat the Filled Capsule. Fill a standard capsule (gelatin or HPMC) with your API formulation (powder, granules, pellets, etc.), lock/seal it, and then put the whole capsule into a pan or fluid-bed coater. The entire capsule is coated with an enteric polymer (e.g. Eudragit®, HPMCP, CAP, etc.). This is the most traditional method. It ensures the shell and cap are covered, but requires an extra coating process, drying time, and possible capsule shrinkage. The benefit is strong acid protection conforming to pharmacopeia. The downside is extra cost and processing – you now have 3 unit operations (filling, sealing, coating). Capsule bands or seals might also be needed to prevent cap-body separation under coating conditions.
• Route 2: Use a Functional Enteric Capsule Shell. Instead of starting with a normal shell, use a pre-formed enteric capsule from suppliers. These are two-piece hard capsules made of HPMCP, HPMCAS, CAP, or other enteric polymers. You simply fill and seal them like ordinary capsules. No coating step is needed. This greatly simplifies production: the acid-resistant property is built into the shell. As one industry review notes, ready-to-fill enteric capsules can reduce the process to “only one manufacturing step,” saving development time and avoiding heat/moisture exposure of a coating step. However, you must source the special shells (higher cost) and validate them. Not all APIs can be directly filled (viscosity, stickiness). Examples: EUDRACAP® (Evonik) capsules use an HPMC shell pre-coated with Eudragit®, offering ~4 hours of acid resistance.

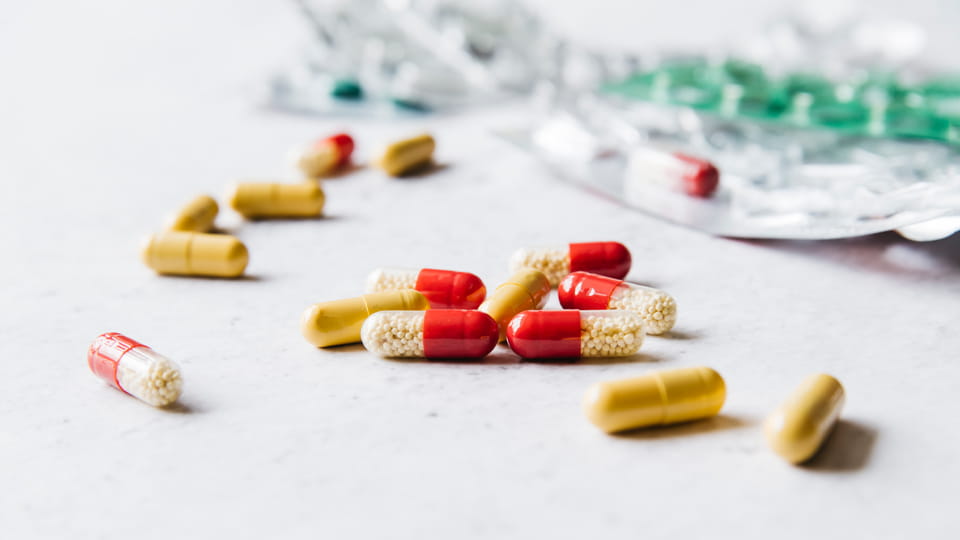

• Route 3: Fill with Enteric-Coated Pellets or Granules. Here, the capsule shell itself can be a normal gelatin or HPMC shell (no special properties). The acid-resistant barrier is achieved by coating pellets, granules or mini-tablets of the drug with enteric polymers before filling. In practice, you would (1) granulate or pelletize the API, (2) coat those pellets in an enteric film coater, then (3) fill the finished coated pellets into capsules. This is common in modified-release products. For example, one can encapsulate enteric-coated aspirin pellets in a capsule. The advantage is great flexibility: you can mix pellets with different coatings to create multiple release profiles. Also, capsule filling equipment can be standard. The downside: you need a whole pellet-coating process (another coating/drying step), and filling many small pellets requires precise dosing (machines need pellet-feeding attachments). Uniform pellet count and protecting the fragile coating during filling are key challenges. But this route avoids coating the capsule itself and can be scaled from lab to production.
• Route 4: Multiparticulate Combination Filling. A more specialized option is to combine different components in one capsule: e.g., some immediate-release powder or mini-tablets plus some enteric-coated pellets. This can create a product that has, say, a first-dose flush (immediate release) and then a delayed-release portion. It might require capsule-filling machines with multiple dosing stations (one for powder, one for pellets, etc.). This approach is mostly used when you want a biphasic or multiphasic release, but it adds complexity. The advantage is ultimate flexibility: you can fine-tune ratios.

Each route requires appropriate downstream steps. For instance, all routes above except Route 2 include a standard capsule locking/finishing step. Routes 1 and 3 both include a dedicated enteric-coating operation (on capsules or pellets). Route 2 may use a simple sealing machine if special shells come pre-gelled. See the Mermaid chart for flows.

Coating Equipment

• Pan Coaters: The classic coating machine is a rotating perforated pan (Drum Coater) where capsules tumble inside while a fine spray applies the polymer solution. Modern models have heated air to dry quickly.
• Fluidized-Bed/ Wurster Coaters: These suspend capsules in a stream of air and spray from below, giving very even coats. Wurster (bottom-spray) is common for small batches or particles.
• Automatic Capsule Fillers: For both types, large-scale production uses automatic capsule-filling machines which align, fill, and lock capsules rapidly. For enteric processes, machines may have gentle closing stations to avoid damaging fragile shells.



Each piece of equipment must be validated for uniformity. High-shear spray nozzles and precise temperature/humidity control are critical to avoid defects (e.g. “orange peel” surface, cracking).

Quality Control and Testing

QC is crucial for both capsule types. Key tests include:

• Content Uniformity: Ensuring each capsule holds the correct dose (by weight or assay).
• Dissolution Testing: For delayed-release capsules, test in appropriate media to confirm delayed-release profile. For enteric capsules, USP tests usually require no drug release in 0.1N HCl for 2 hours, followed by release in pH 6.8 buffer. Instruments like USP apparatus 2 (paddle) or apparatus 1 (basket) are used.
• Disintegration: Enteric forms must meet compendial disintegration: no break-down in 0.1N HCl for typically 1–2 hours, then pass in pH 6.8.
• Moisture Content: HPMC capsules have low moisture (<10%); gelatin capsules ~12–15%. Moisture affects hardness, so measure with Karl Fischer titration.
• Stability Testing: As with any dosage form, perform accelerated stability (e.g. 40°C/75% RH) and shelf-life studies. Coated capsules may have additional sensitivity (some enteric polymers are hygroscopic), so monitor drug potency and coat integrity over time.

According to Kolmar’s overview, “rigorous testing is conducted to ensure each batch meets industry standards for content uniformity, dissolution, and stability”. In practice, especially for enteric-coated forms, the combined disintegration/dissolution test is paramount.

Scale-Up Considerations

When scaling production from lab to commercial batches:

• Coating Scale-Up: The spray rate, pan speed, and drying airflow often need re-optimization. Film quality must remain consistent; larger pans may require slower coating to avoid “hot spots” and thickness variation. The rule of thumb is to keep the coating weight gain (percentage of added polymer) consistent, and always verify uniformity.
• Equipment Differences: Small machines may use different spray guns or mixers than large ones. Always re-validate process parameters (e.g. inlet air temp, spray atomization pressure) at scale.
• Process Time: Coating large batches can take hours (or more), affecting throughput. Efficient scheduling and cleaning becomes critical.
• Packaging: Coated capsules, especially enteric, should be kept in moisture-proof packaging, as humidity can prematurely soften the film.

Troubleshooting Tips

Common problems (especially with enteric coatings) include:

• Coating Peeling/Flaking: Often due to poor adhesion. Causes can be an insufficient binder or too large spray droplets. Solution: ensure fine atomization, optimize polymer concentration, and possibly use adhesion promoters.
• Cracking: If the film cracks, acid can leak in. Typically due to drying too fast/ hot or too thick a film, causing internal stress. Solution: Reduce inlet air temperature, use plasticizers, and cure slowly.
• Inconsistent Thickness: This leads to some units releasing early. Often due to “dead spots” in the coating pan. Ensure tablets/capsules tumble uniformly (check baffles), or switch to fluid bed if needed.
• Sticking (Twinning): Especially with capsule-shaped tabs. Minimize by using anti-tacking agents (talc) and controlling spray rate.
• Dissolution Failures: If enteric capsules fail (release too early or not at all), the issues above are likely. Use analytical tests (pH scans, microscopy) to diagnose coat uniformity.

In general, start by examining in-process moisture (too high makes coatings sticky), spray droplet size, and batch-to-batch consistency of excipients. Many coating defects can be prevented with careful validation and controls.

Choosing Between Delayed Release and Enteric Coating

To decide which is right for your product, consider:

• API Sensitivity: Is the drug unstable in stomach acid? If yes, enteric-coated is needed. If only stomach irritation is the issue (and the API survives acid), delayed-release (HPMC shell) might suffice.
• Target Site: Do you need release in the small intestine or beyond (e.g. for colon targeting)? Enteric is designed for intestinal delivery. Delayed release without enteric might not reach far enough.
• Speed of Onset: A delayed-release capsule still gives a burst of drug after the lag. For true gradual release, a different system would be needed.
• Formulation Flexibility: Delayed HPMC capsules allow larger fill weights and sizes; some enteric coatings require size/shape constraints. If you need a nonstandard capsule, check compatibility with coating process.
• Cost/Budget: Enteric coating adds materials and processing time, increasing cost. For tight budgets or simpler formulations, delayed-release (e.g. thick HPMC) may be more economical.
• Regulatory & Market: Enteric means more testing (two-stage dissolution). Also, depending on region, “enteric-coated” labeling may have regulatory implications.

A quick checklist:

• Is the API acid-sensitive or enzymatic (e.g. enzymes, probiotic)? → Likely Enteric-Coated.
• Is stomach upset a concern but API is stable in acid? → Maybe Delayed-Release (HPMC).
• Do you need to release in the small intestine specifically? → Enteric-Coated.
• Do you need a cosmetic aspect (e.g. hiding taste) with just a modest delay? → Delayed-Release.
• Is Kosher/Halal certification needed? (Note: many HPMC are vegetarian; some enteric capsules are also vegetarian) → Both can meet this with the right materials.
• Are high-speed coating facilities and expertise available? If not, delayed-release may be easier to implement.

Choosing early in development is critical. Using the wrong capsule can ruin stability or dissolution and be costly to fix later. Work closely with formulation experts and equipment engineers to make the right call.

Conclusion

In summary, delayed-release is a broad strategy (any way to postpone release), while enteric-coated capsules are one specific method (acid-resistant film). To design the right delayed-release capsule, first define your release target (e.g. intestinal absorption, gastric protection) and practical constraints (existing equipment, formulation properties). Then pick a route: coat the filled capsule, use a pH-sensitive shell, fill with coated pellets, or a hybrid approach. Each route will affect your capsule filling process: e.g. pellet fills need pellet-dosing modules, enteric shells require sourcing special capsules, and coated capsules require post-fill coating.

No matter which path you take, remember to test rigorously. Dissolution in acid and buffer, fill-weight uniformity, pellet integrity, and stability are critical checkpoints. Modern capsule filling machines (like JinLu’s automatic capsule fillers) are quite versatile and can handle either route. They support powders, granules and pellets in hard capsules, making implementation feasible on the production floor.

If you’re evaluating delayed-release options for your product, we encourage you to send us your formulation details (capsule size, material, fill type, target dose, etc.). Our engineering team can then advise which approach fits best and offer sample tests on our equipment. Use the information above to frame your questions, and let us help you choose the safest, most cost-effective manufacturing route for your delayed-release capsules.

FAQs About Delayed Release vs Enteric Coated Capsules

References：
1.Oral Gastro-resistant Formulations – State of the Art, Advances and Prospects: A Review —— Springer Nature
2.Fish Oil Containing Omega-3 Acids Delayed-Release Capsules —— USP
3.In Vitro Evaluation of Enteric-Coated HPMC Capsules—Effect of Formulation Factors on Product Performance —— PMC
4.Exploring Immersion Coating as a Cost-Effective Method for Small-Scale Production of Enteric-Coated Gelatin Capsules —— PMC
5.Enteric coated HPMC capsules designed to achieve intestinal targeting —— PMC
6.Guidance for Industry SUPAC-MR: Modified Release Solid Oral Dosage Forms —— U.S. Food and Drug Administration
