How to Calculate Capsule Fill Weight from Bulk Density and Capsule Size

In capsule formulation and manufacturing, a common question is: given a powder’s bulk density and the capsule’s internal volume, how do we calculate the theoretical fill weight? The short answer: use the capsule’s volume (in mL) and the powder’s density (g/mL) in the formula Weight (mg) = Volume (mL) × Density (g/mL) × 1000. This gives an estimated fill weight in milligrams. For example, a size 0 capsule has about 0.68 mL of volume. If your powder’s bulk density is 0.6 g/mL, the calculation is 0.68×0.6×1000 ≈ 408 mg. (If the density were 1.0 g/mL, it would be 680 mg at most.) Right away you get a rough figure. However, it’s crucial to note: this is a theoretical number under ideal conditions. In real production, factors like powder settling, particle shape, moisture and machine tamping can make actual capsule weights differ. In other words, the formula shows what could fit; careful testing on your capsule filler is needed to see what actually fits.

In this guide, we’ll explain how to apply the fill-weight formula, give real examples, and show a capsule size chart with estimated weights. We’ll also cover why actual capsule weights differ from the theory, and how to verify fills on a capsule machine. By the end, you’ll have a clear, step-by-step understanding of how to estimate capsule fill weight from bulk density and capsule size – without wasting time or material.

1. What Determines Capsule Fill Weight?

A capsule’s fill weight (how much powder it holds) depends on three main factors: the capsule’s size (and its internal volume), the powder’s bulk density, and the filling method (including any compaction).

• Capsule Size (Internal Volume): Capsule sizes are numbered from largest to smallest (000, 00, 0, 1, 2, 3, 4, 5). Larger numbers mean smaller capsules. Each size has a roughly fixed internal volume. For example, a size 00 hard capsule holds about 0.90 mL, while a size 5 holds only ~0.13 mL. Since weight = volume × density, size directly limits how much powder can fit.
• Powder Bulk Density: Bulk density (mass per total volume) tells us how much powder (in grams or mg) occupies 1 mL when poured freely. A denser powder packs more mass in the same volume than a light fluffy powder. For example, two size 0 capsules (0.68 mL) will hold very different weights if one powder is 0.5 g/mL and the other is 1.0 g/mL. Even if volume is fixed by capsule size, fill weight doubles if density doubles. Additionally, powder flow properties (flowability, compressibility, moisture content) affect how completely the powder settles into the capsule volume. Very poor-flowing or electrostatic powders can leave gaps or bridge, reducing actual fill weight. Remember that bulk density can be measured as poured (loose) or tapped (after vibration). Use the appropriate density that matches your filling condition (often tapped or machine-compacted density for capsule fillers).
• Filling Equipment and Method: Capsule fillers fill capsules by volume (using tamping pins, dosing discs, augers, etc.). The machine’s mechanism compresses the powder to varying degrees. For a volumetric filler, the density you should use in the formula is effectively the bulk density in the chosen fill conditions (often the tapped density or “apparent” density after the machine’s action). If you use a dosator (vacuum and tamp), the fill can be denser. Besides, machine settings like tamp depth, vibration, auger speed and hopper agitation all influence how fully the capsule is filled. So even with the same capsule size and powder, two different machines or speed settings can yield different fill weights.

In summary: capsule size gives you the volume, powder density (and behavior) tells you how much mass fits that volume, and machine/setup determines how the powder actually packs. All three must be considered. For example, if you just did the simple formula (Volume×Density), you might get 408 mg for a size 0 at 0.6 g/mL. But in production you often see that bulk powder isn’t fully tapped into place, so actual filled capsules may weigh less (or more, if tamped heavily). We’ll get into those caveats later, but first let’s put the formula front and center.

2. The Capsule Fill Weight Formula

At its core, the formula is straightforward:

Fill Weight (mg) = Volume (mL) × Density (g/mL) × 1000

• Volume (V): the usable internal volume of the capsule (in milliliters). For example, size 0 ≈ 0.68 mL, size 00 ≈ 0.90 mL, etc. (See the chart below for common sizes.)
• Density (ρ): the powder bulk density in g/mL, measured under conditions similar to filling (e.g. tapped density if the machine compacts the powder).

Expressed in words, weight in mg = volume × density × 1000.

It’s also useful to rearrange the formula when targeting a fill weight:

• To find required volume:V(mL)=W(mg)/1000×ρ(g/mL). For example, if you need 450 mg at 0.75 g/mL, V=450/(1000×0.75)=0.60 mL. You then choose a capsule that has ≥0.60 mL.
• Units check: Density in g/mL and volume in mL produce grams, multiplied by 1000 gives milligrams.

Tip: Always use consistent volume. The “volume” should be the actual internal capacity of the fully closed capsule (both cap and body) that can be filled. Do not use the outer dimensions or container volume. Use published capsule volume charts (see next section) or measure with a graduated cylinder if uncertain.

Example Formula Calculation

Suppose you have:

• Capsule size 0 (usable volume ≈ 0.68 mL).
• Powder bulk density = 0.60 g/mL (a common loose bulk density for many powders).

Then theoretical fill weight = 0.68 mL × 0.60 g/mL × 1000 = 408 mg.

This 408 mg is the amount of powder that should fit if the powder settled naturally. In reality, the actual fill might be a bit more or less (see Section 6). But this gives you the baseline.

3. Capsule Fill Weight Calculation Examples

Let’s work through a few scenarios to see how the formula applies:

Example 1 – Size 0 Capsule:

• Size 0 volume ≈ 68 mL.
• Powder bulk density = 60 g/mL.
• Calculate: 0.68×0.60×1000≈408 mg.
• Result: The size 0 capsule can theoretically hold about 408 mg of this powder.

Example 2 – Comparing Sizes:

• Assume the same powder (0.60 g/mL). Compare size 00 vs size 1:
  • Size 00 volume ≈ 90 mL, so weight = 0.90×0.60×1000 = 540 mg.
  • Size 1 volume ≈ 48 mL, so weight = 0.48×0.60×1000 = 288 mg.
• Insight: Although sizes 00 and 1 look similar, 00 holds almost double the weight of 1 at the same density.

Example 3 – Target Dose:

• • Suppose you have a dose requirement of 450 mg of powder with density 75 g/mL. How much volume is needed, and what capsule could you use?
  • Required volume V=450/(1000×0.75)=0.60 mL.

• From charts, size 0 has 0.68 mL and size 00 has 0.90 mL. Both can accommodate 0.60 mL, but size 0 leaves some headspace. If you want a snugger fill (less headspace), you might choose size 0. If you worry about variation or need a bit more, size 00 could work.

These examples show how to plug in numbers. In practice, always cross-check the calculated volume against a capsule’s capacity chart (next section).

4. Capsule Size Chart: Estimated Fill Weight by Density

To make quick estimates, use a capsule capacity chart. Below is a simplified reference for common hard capsule sizes (000–5). Note the volumes and approximate fill weights at different densities:

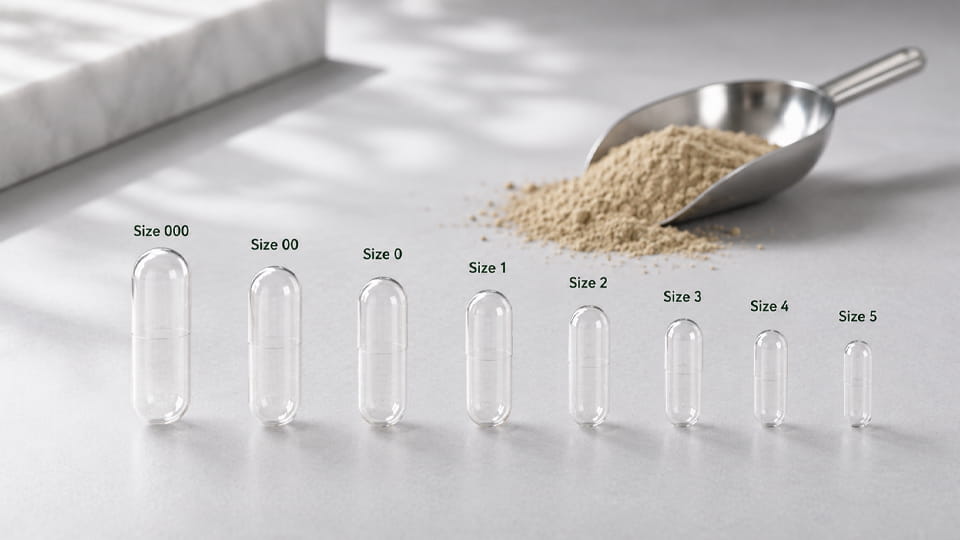

Figure: Hard capsule sizes (000 largest to 5 smallest) vary widely in volume and fill capacity. Even at the same density, a size 5 holds far less than a size 0.

These numbers come from published capsule specifications and simply multiply volume by density×1000. For instance, size 0 at 1.0 g/mL is 0.68 mL×1.0×1000 ≈ 680 mg.

Why it’s only an estimate: Real powders often have voids, irregular shapes, or compression differences. Also, capsule suppliers’ volumes can vary slightly, and measuring volume precisely is tricky. Use the chart as a starting point. For any critical formulation, confirm by actual weighing tests.

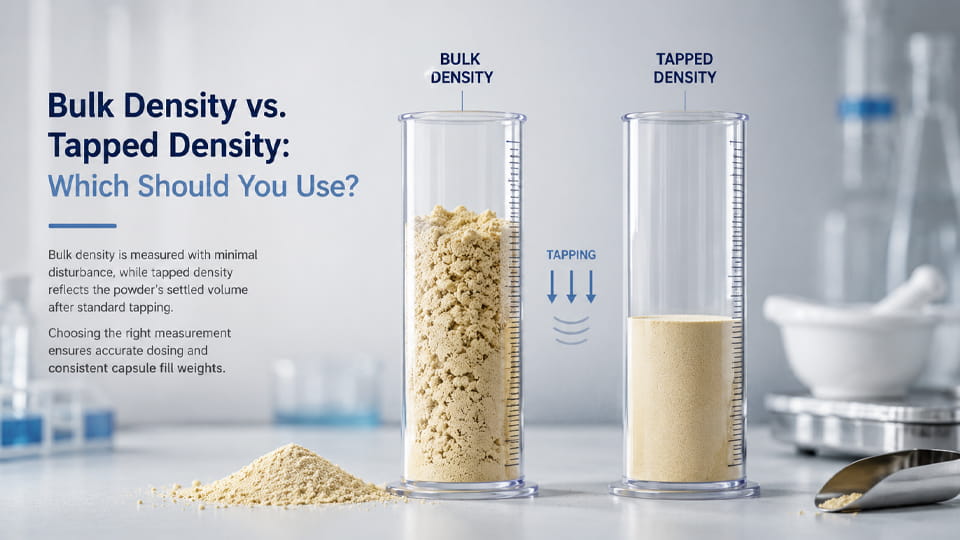

5. Bulk Density vs. Tapped Density: Which Should You Use?

Bulk density is the mass of powder divided by the total volume it occupies when poured freely (including voids). Tapped density is measured after mechanically tapping/vibrating the container, allowing the powder to settle and pack more densely. In practical terms:

• Bulk (freely settled) density = how powder sits without compaction.
• Tapped density = how powder sits after vibration/compression.

For capsule filling, the difference matters. Filling machines typically vibrate or tamp the powder, so the effective packing density increases. That means if you use the loose bulk density in the formula, you may under-estimate how much will actually fit (the machine can pack more). Conversely, using tapped density (higher number) yields a more conservative estimate. Choose the density measure that matches your filling process.

We cited pharma-machinery’s description:

“Bulk density refers to how a powder packs naturally without compression, and tapped density measures how much powder settles when tapped or vibrated”.

Most recommendations for capsule fill calculations suggest using the tapped density or a tapped-like density if your machine tamping significantly densifies the powder. If unsure, measure both: fill one capsule using a sample, weigh it, and compare with the two calculated values as a quick check.

6. Why Does Actual Capsule Fill Weight Differ from the Estimate?

Even with a precise formula, many factors can cause actual filled weight to diverge:

• Powder Flowability & Particle Size: Fine or irregular particles may pack more tightly (higher tapped density) or clog the dosing track, while coarse granules might have more voids. Poor flow (high cohesiveness) can lead to inconsistent fills. As pharma-machinery notes, powder attributes directly affect fill volume and weight.
• Moisture & Segregation: Hygroscopic powders may clump, reducing fill efficiency. If a blend segregates by size/density during filling, the weight can vary from capsule to capsule.
• Machine Dosing Mechanism: The design of the dosing disc, tamping depth, fill chamber volume, and vibration amplitude all influence how much powder each capsule receives. For example, deeper tamping gives more powder in a fixed volume.
• Capsule Shell Weight vs. Net Fill: Sometimes weight variation is partly due to shell thickness variation, not just powder. Always subtract the empty capsule shell weight to focus on net fill.

In practice, one often finds the actual fill weight is slightly lower than the theoretical bulk calculation, because the powder can’t be packed to the crystal density and some voids remain. Or it may be higher if the machine overfills or compresses strongly. The key is to treat the formula as a guide, then adjust by fine-tuning your machine settings and blend consistency.

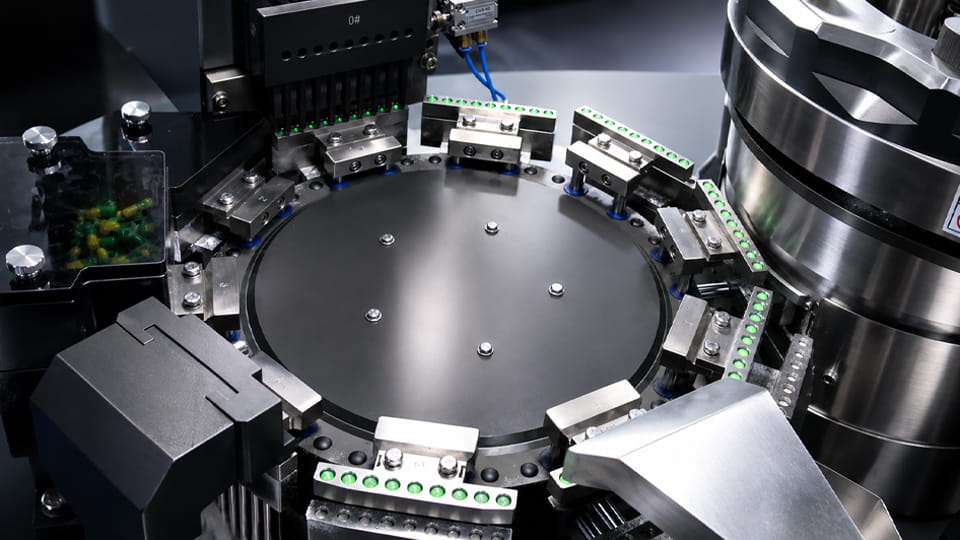

7. How to Verify the Estimated Fill Weight on a Capsule Filler

To bridge the gap between theory and practice, follow a simple verification process on your capsule filling machine:

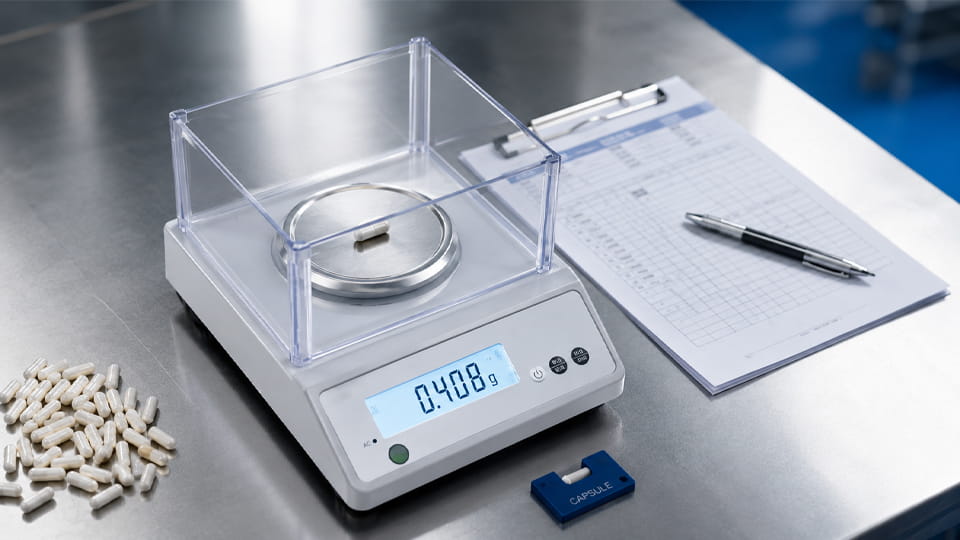

• Weigh Test Runs: Run a small batch of capsules using your standard process. Weigh at least 10 filled capsules (including shells). Divide by number of capsules to get the actual average fill weight. Compare this to the theoretical weight from your calculation.
• Adjust Machine Settings: If actual weight is consistently high or low, adjust the dosing disc (change position) or tamping depth accordingly. For example, if too light, you may need to lower the disc (increasing volume) or allow more powder to settle.
• Check Consistency: Take multiple samples over the run to ensure weight remains uniform. Variability could indicate flow issues or fluctuating bulk density.
• Fine-Tuning Tips: Make sure powder is well-mixed and conditioned to stable humidity. Use vacuum or anti-static measures if sticking is an issue. Lubricants or glidants can improve flowability.

By iterating this process, your fill weight will converge to the desired target. Once you’re satisfied, document the settings and conditions for scale-up or future runs.

Conclusion

In summary, estimating capsule fill weight starts with a simple formula: capsule volume × powder density. By knowing your capsule’s internal volume (e.g. ~0.68 mL for size 0) and the powder’s bulk (or tapped) density, you can calculate a theoretical fill weight. Use examples and charts to pick the right capsule size or target weight. Always remember that real-world factors (flowability, tamping, humidity, etc.) will affect the outcome.

Once you have an estimate, confirm it on your capsule filling machine by test-weighing filled capsules and adjusting machine settings as needed. This approach avoids trial-and-error waste and leads to precise dosing – whether you’re using a manual device or a high-speed capsule filler.

For large-scale production, choosing the right equipment is crucial. Jinlu Packing’s automatic and semi-automatic capsule fillers, for instance, offer precise dosing mechanisms to achieve accurate fill weights. (Our auto-fillers can handle up to 468,000 capsules/hour.) If you need a robust solution, explore Jinlu’s capsule filling machines and get a tailored recommendation.

Ready to optimize your capsule filling? Use this guide’s formula and tips, and reach out to Jinlu Packing for advanced capsule filling equipment or customized support. Your accurate, efficient capsule production awaits!
