Tablet Disintegration vs Dissolution: What Each Test Shows and Why Results Diverge

Trong sản xuất dược phẩm, Tablet disintegration and dissolution are two different tests used to evaluate tablet performance. Disintegration measures how quickly a tablet breaks apart after contacting a liquid, while dissolution measures how much of the hoạt chất dược phẩm (API) goes into solution over time. Nói một cách đơn giản, disintegration tells you whether the tablet breaks up; dissolution tells you how the drug is released into the test medium.

These two results can be related, but they do not always match. A tablet may disintegrate quickly but still show slow dissolution because of poor API solubility, large particle size, poor wettability, excessive lubrication, or formulation factors. Ngược lại, a tablet with slower disintegration may still meet its dissolution requirements depending on the drug and dosage-form design.

Đối với nhà sản xuất dược phẩm, understanding this difference is important when investigating tablet disintegration or dissolution problems. This article explains what each test actually shows, why their results can diverge, and how formulation, lực nén, tablet porosity, sự tan rã, bôi trơn, and other manufacturing factors can affect tablet performance.

Tablet Disintegration vs Dissolution: What Is the Difference?

Theo định nghĩa, disintegration testing (USP <701>) assesses whether an immediate‑release tablet breaks into smaller fragments within a specified time in liquid (usually water). Dissolution testing (USP <711>) measures how much of the active drug goes into solution over time under controlled conditions. Nói một cách đơn giản:

• Disintegration test: Does the tablet fall apart? Measures the thời gian tan rã (how long it takes to fragment).
• Dissolution test: How much drug dissolves? Measures percent of API dissolved vs. thời gian (các dissolution profile).

Disintegration is a mechanical break-up process. Without proper disintegration, only the API near the tablet surface can dissolve. Even if a tablet disintegrates fully, các giải tán depends on drug properties (độ hòa tan, kích thước hạt, wettability) and test conditions. Trong thực tế, the two tests often correlate but can diverge. Ví dụ, a tablet might break up rapidly (short disintegration time) but still release drug slowly if the API is poorly soluble. Ngược lại, a tablet might disintegrate slowly (long disintegration time) but still meet dissolution specs if the drug dissolves readily once particles are wetted.

The table below concisely compares the two tests:

Tóm lại: Fast disintegration ≠ fast dissolution unless the drug is soluble enough. As one expert review states, “Wetting and subsequent disintegration of the powder compact is the first step towards liberation of the API… without disintegration only the API near the surface… dissolves”. Thus a full tablet disintegration is usually needed for consistent dissolution, but other factors govern how quickly the drug then dissolves.

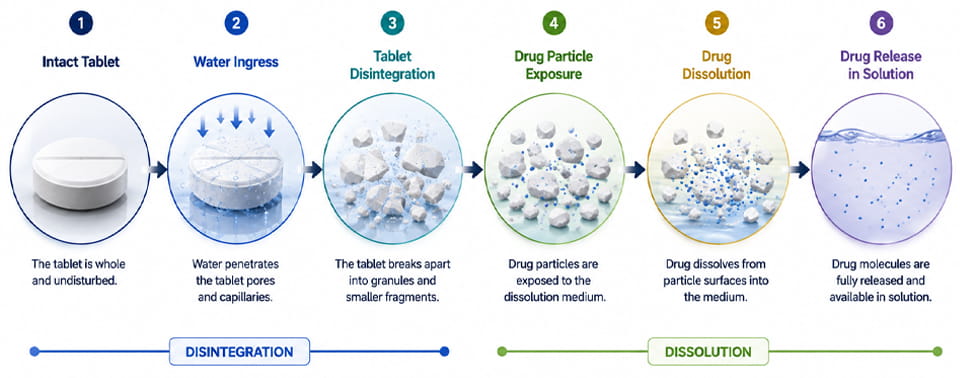

Nhân vật: Tablet → water penetration → disintegration → particle exposure → dissolution → drug release. Effective disintegration increases surface area for dissolution.

Như đã lưu ý ở trên, disintegration is only the Đầu tiên step towards drug release. A tablet can meet disintegration criteria (pass USP <701>) yet still fail dissolution if the drug fails to dissolve. Ngược lại, some formulations (like modified-release or mucoadhesive tablets) may intentionally not fully disintegrate – yet they dissolve as designed. Trong thực tế, we often see these patterns:

• Fast disintegration but slow dissolution: Often a poorly soluble API or hydrophobic matrix (ví dụ. high HPMC) causes slow release of drug even after tablet breaks. The disintegration profile may look normal, but the dissolution curve has low plateau (API remains undissolved).
• Slow disintegration and dissolution: If a tablet is very hard (high compression force) or has too much binder/coating, it may neither break up nor release drug quickly. Đây cả hai tests can fail.
• Pass dissolution despite incomplete disintegration: Rare but possible if a very soluble drug quickly dissolves out of partially broken fragments. (This is why USP <701> allows any residue to be a soft mass rather than full solution.)
• Disintegration unaffected by API: Tiêu biểu, disintegration mainly responds to excipient levels, whereas dissolution depends on API/excipient interplay.

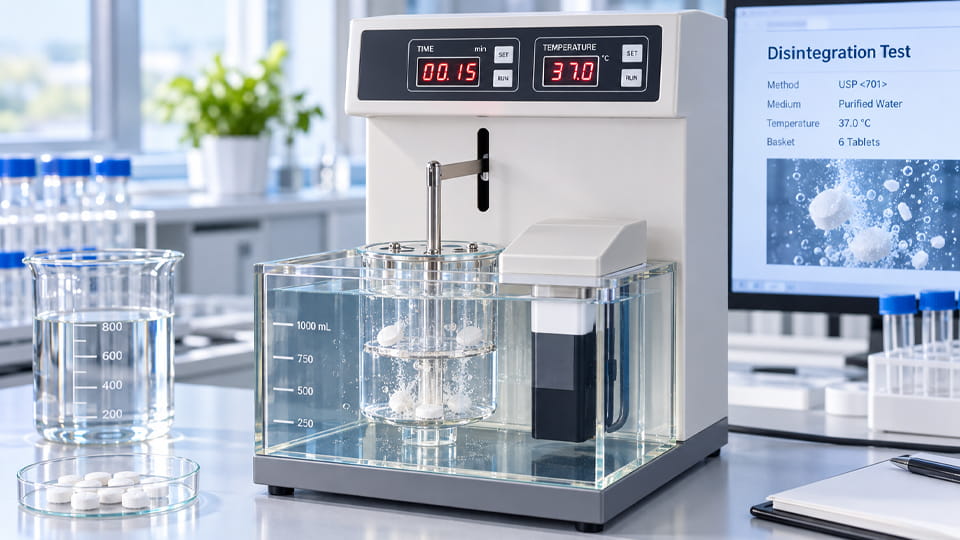

What Does a Tablet Disintegration Test Actually Show?

A tablet’s disintegration test measures how quickly liquid penetrates and breaks apart the tablet. In the standard apparatus, tablets sit in fluid on a disintegration tester; springs or perforated disks help agitate the sample. Điểm mấu chốt:

• Quá trình: Nước (or specified medium) enters pores, causes swelling or erosion of binding matrix, and the tablet falls apart.
• Kết quả: Các thời gian tan rã (seconds or minutes) until no granules/cohesive mass remains (or only particles that passed through the mesh).
• Influencing factors: Tablet porosity, độ cứng (lực nén), and disintegrant level. More pores and less hardness → faster disintegration; extra disintegrant (ví dụ. croscarmelloza) accelerates breakup.
• Giới hạn: Disintegration does not measure drug release. A tablet could fragment yet still contain intact granules that dissolve slowly.

In immediate‐release tablets, sự tan rã (ví dụ. crospovidon, croscarmelloza) promote rapid breakup. Ví dụ, Markus Markl and Greg Zeitler note that disintegrants create small granules and expose particles for dissolution. If a tablet fails disintegration (takes too long or doesn’t break), that indicates a formulation or equipment issue (ví dụ. excessive binder or force). Tuy nhiên, even a fast‑disintegrating tablet may not meet dissolution specs if the drug is insoluble or protected by coating.

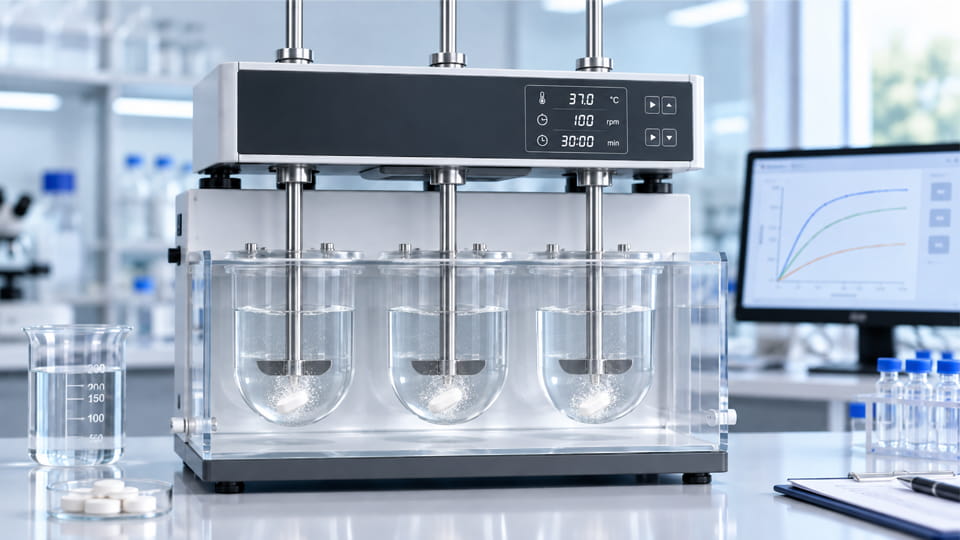

What Does a Tablet Dissolution Test Actually Show?

A tablet’s dissolution test evaluates drug release kinetics into a specified fluid (often water or buffer). Key aspects:

• Quá trình: Máy tính bảng (whole or crushed form) is placed in a dissolution apparatus (mái chèo, basket, flow cell, vân vân.) trong điều kiện được kiểm soát (nhiệt độ, stirring speed, trung bình). Samples are taken at set times.
• Kết quả: Các dissolution profile – percent of API in solution vs. thời gian (or drug amount/time).
• Influencing factors: Intrinsic drug solubility, kích thước hạt, tablet matrix, pH and surfactants in medium, and test apparatus conditions. Highly soluble drugs may dissolve quickly regardless of tablet hardness.
• Quality check: Dissolution is often the specification for release and stability. A tablet can pass dissolution criteria even if it took longer to fall apart (within reason). Ngược lại, tablets may disintegrate but dissolve slowly due to solubility limits.

For immediate-release products, dissolution is the in vitro surrogate for in vivo drug availability. FDA guidance explains that dissolution tests (USP <711>) ensure consistent product quality and bioequivalence. Unlike disintegration, dissolution directly measures the amount of drug ready to be absorbed, and reflects both tablet breakup and API behavior. Tóm lại, dissolution answers: “How much active ingredient actually dissolves over time?”

Why Can Disintegration and Dissolution Results Diverge?

Different factors can cause a tablet to disintegrate and dissolve at mismatched rates. Below are 8 key causes of divergence. Each cause is explained with mechanism, likely test pattern, and what to investigate.

1. Poor API Solubility or Wettability: If the drug itself is poorly soluble (BCS Class II/IV), even a fully broken tablet will dissolve slowly. Cơ chế: After disintegration, undissolved hydrophobic drug particles remain. Pattern: Fast disintegration + slow dissolution. Investigate: API solubility, kích thước hạt, crystalline form, need for surfactants. Ví dụ, high drug loading with low solubility can give low % dissolved despite rapid disintegration.
2. Độ cứng của máy tính bảng & Porosity (Lực nén): Overly hard tablets resist fluid ingress. Cơ chế: High compression yields low porosity, so water takes longer to penetrate and break the tablet. Pattern: Slow disintegration + slow dissolution. Investigate: Độ cứng của máy tính bảng, lực nén, porosity measurements. A harder tablet often shows both longer disintegration time and slower drug release.
3. Disintegrant Level or Performance: Too little disintegrant, or a less effective type, slows breakup. Cơ chế: Lack of swelling/wicking agents means tablet stays intact longer. Pattern: Slow disintegration and often slow dissolution. Investigate: Disintegrant type/quantity, moisture exposure, distributor. (Ví dụ. cross-linked PVP vs croscarmellose can behave differently.)
4. chất kết dính / Granulation Effects: Excessive binder or tạo hạt can glue particles together. Cơ chế: chất kết dính (ví dụ. PVP, starch paste) strengthen the tablet matrix. Pattern: Slow disintegration, leading to slow dissolution. Investigate: Binder type, granulation moisture. Studies show increasing tablet polymer or binder concentration markedly tăng lên thời gian tan rã. Formulations with microcrystalline cellulose plus HPMC binder had much longer disintegration than with superdisintegrant.
5. Lubricant or Hydrophobic Coating: Overuse of magnesium stearate or oily lubricants creates hydrophobic surfaces. Cơ chế: Lubricant coats powder particles, hindering wetting. Pattern: Even if tablet breaks up, dissolution is slow (fast disintegration but low % dissolved). Investigate: Lubricant type/level, mixing time. A very slow dissolution despite good disintegration often signals over-lubrication.
6. API Particle Size and Surface Area: Large API crystals dissolve slowly. Cơ chế: After disintegration, fewer exposed surfaces means lower dissolution rate. Pattern: Fast disintegration + slow dissolution (if surface area is limiting). Investigate: API particle size distribution, crystallinity. Reducing particle size (xay xát) generally increases dissolution rate.
7. Film Coating or Formulation Design: ruột or functional coatings delay both disintegration and dissolution intentionally. Cơ chế: Coatings block fluid entry until erosion or pH triggers release. Pattern: Very slow disintegration/dissolution (or success if target is modified release). Investigate: Coating integrity, Độ dày, kiểu. If a product is meant for immediate release, any residual coating or partial film can cause divergence.
8. Dissolution Test Conditions: Differences in test setup (medium pH, apparatus, vòng / phút) can cause unexpected results. Cơ chế: An inappropriate medium (wrong buffer/pH) can slow dissolution of a pH-dependent drug; agitation speed affects turbulence. Pattern: Normal disintegration, variable dissolution results. Investigate: Confirm correct medium, nhiệt độ, and instrument calibration. Also check sampling and analysis method. Sometimes an apparent dissolution “failure” is simply a test-method issue.

By analyzing each cause (with mechanism and expected outcomes), one can prioritize what to check when disintegration vs dissolution do not match expectations. Ví dụ, if tablets dissolve very slowly but disintegrate normally, focus on API properties or dissolution medium. If tablets barely break up, focus on formulation (binder/disintegrant) and compression.

Common Result Patterns and What to Investigate

The table below summarizes typical test outcome combinations and suggests where to look. These are general patterns; always compare against product-specific specifications and release mechanisms.

Ví dụ, a fast disintegration but slow dissolution often points to a low-solubility API or excessive hydrophobic lubricant – the tablet breaks up but drug goes into solution sluggishly. Ngược lại, a slow disintegration and slow dissolution suggest too strong or too dense a tablet. If disintegration is slow but dissolution actually meets product requirements, review whether the disintegration limit is overly strict for this formulation. Variable results usually mean batch-to-batch inconsistency or test error.

How to Troubleshoot Disintegration and Dissolution Failures

When tests diverge from expectations, a systematic investigation is needed. Here’s a recommended workflow with key checks (inspired by GMP Out-of-Spec procedures):

1. Verify Test Results & Phương pháp: Đầu tiên, ensure the tests were performed correctly. Check the dissolution medium (pH, composition, nhiệt độ), apparatus rpm, and calibration of equipment. For dissolution, confirm sample withdrawal, lọc, and analysis procedures. Rule out test errors before changing formulations or process.
2. Review API Properties: If tests seem valid, examine the API. Check its độ hòa tan, wetting characteristics, Và kích thước hạt. A poorly soluble drug may require surfactants. If API was changed or milled differently, note that. Verify the correct polymorph/crystalline form was used.
3. Review Formulation Components: Inspect amounts and types of sự tan rã, chất kết dính, chất làm đầy, và chất bôi trơn. Small formulation tweaks can impact both tests. Ví dụ, ensure the disintegrant level wasn’t accidentally reduced. Check blending records – a segregation issue could cause low disintegrant in some tablets.
4. Review Compression/Manufacturing Records: Examine the tableting logs (pre-compression force, main compression force, tốc độ tháp pháo, feed frame speed). High compression force or low pre-compression can drastically slow disintegration. Look for changes in tablet hardness or thickness. Also consider downstream processes: excessive drying or aging can harden tablets over time.
5. Evaluate Coating and Drug Release Design: If coated, check coat thickness, chính trực, and process parameters (tốc độ phun, oven temperatures). Any change in coating formulation or equipment could alter disintegration. For modified-release designs, ensure no inadvertent cross-effect on the dissolution layer.
6. Confirm Hypotheses with Testing: Once likely causes are identified, perform confirmatory tests. Ví dụ, retest dissolution with a media cosolvent (if solubility is suspected), or retest disintegration after lightly crushing tablets. In a GMP investigation, any retesting should be controlled and documented. Avoid “fixing” parameters to meet specs before understanding the root cause.

Throughout the troubleshooting, document each check. Below is a checklist of actions:

• Repeat the dissolution and disintegration tests (with controls) to confirm results.
• Check analytical method (tiêu chuẩn, calibration curve) for possible error.
• Review raw material certificates (API solubility, cấp; tá dược lô).
• Compare tablet weight, Độ dày, and hardness of failed vs. passed batches.
• Review compression force data and turret speed logs.
• Inspect tablet surfaces (coating uniformity, visible capping or lamination).
• Evaluate mixing/homogeneity of powder blend (could cause variability).
• If formulation is suspect, consider running small lab-scale runs with adjusted disintegrant or compression to see effect.

This systematic approach—from lab method to formulation to equipment—helps pinpoint why results diverge and ensures robust tablets.

How Does Tablet Manufacturing Affect Disintegration and Dissolution?

Tablet press settings and tooling can significantly influence both tests. Key manufacturing variables and their effects include:

Ví dụ, lực nén is a critical lever: increasing force will usually boost tablet hardness and reduce porosity, making water penetration slower. Ngược lại, a very high turret speed (thời gian dừng ngắn) might produce slightly softer tablets that release drug faster (though at risk of weight fluctuations). Jinlu’s literature (ví dụ. on nén thời gian dừng lại) explains how speed and turret design influence dwell. Tương tự, đồng phục cho ăn and proper lubrication ensure consistent tablet surfaces; any hiccup in these can cause unpredictable dissolution values.

Refer to Jinlu’s máy ép viên product pages for compression settings, nén trước đặc trưng, Và dụng cụ máy tính bảng solutions to see how adjustable parameters can help achieve the desired tablet properties.

Can Disintegration Replace Dissolution Testing?

Regulators recognize that in some cases a disintegration test may suffice for immediate-release tablets, but strict criteria apply. FDA Q6A guidance notes that for highly soluble drugs in certain IR formulations, one might justify using disintegration as a surrogate if supported by data. Trong thực tế, this is rare and requires demonstrating by test data that the drug is “truly rapidly dissolving.” USP <701> explicitly focuses on tablet breakup, trong khi <711> remains the gold standard for drug release.

Nói cách khác, disintegration can never automatically replace dissolution testing. Any substitution must be justified by regulatory submissions, ví dụ. by showing the drug is Class I (high solubility, high permeability) and formulation is “simple”. Thậm chí sau đó, pharmacopeia chapters suggest the disintegration test conditions must exactly match the dissolution specification (VÍ DỤ., trung bình, apparatus). Companies often keep both tests for full assurance.

Phần kết luận: Better Tablet Quality Starts with Understanding Both Tests

Tablet disintegration and dissolution measure different aspects of tablet performance. Disintegration shows how a tablet breaks apart, while dissolution reveals how much of the active drug enters solution over time. When results diverge, the cause may lie in API properties, xây dựng, compression settings, or testing conditions.

Đối với nhà sản xuất dược phẩm, understanding these differences is essential for maintaining consistent tablet quality. A well-controlled compression process helps reduce manufacturing variability, but achieving the desired dissolution profile also requires suitable formulation design and appropriate quality testing.

Need a more consistent tablet compression process?

Và chọn Jeinlu, we provide máy ép viên quay máy móc and customized pharmaceutical manufacturing solutions. Whether you’re developing a new tablet formulation, nâng cấp thiết bị hiện có, or scaling up production, our engineering team can help you evaluate suitable compression force, nén trước, cho ăn, and production capacity requirements.

Liên hệ với Jinlu Đóng gói ngay hôm nay to discuss your tablet specifications, đặc điểm vật chất, và mục tiêu sản xuất.

FAQs On Tablet Disintegration vs Dissolution

Tài liệu tham khảo：
1.Dissolution Testing of Immediate Release Solid Oral Dosage Forms —— FDA
2.Compilation of FDA Guidance and Resources for in vitro Dissolution Testing of Immediate Release Solid Oral Dosage Forms —— FDA
3.Exploring the performance-controlling tablet disintegration mechanisms for direct compression formulations —— PubMed
4.Supporting Information for Dissolution / Phát hành thuốc / Disintegration Tests —— USP
5.ICH Q4B Annex 5 Disintegration Test —— Cơ quan Dược phẩm Châu Âu
6.A Review of Disintegration Mechanisms and Measurement Techniques —— Thiên nhiên mùa xuân
