How to Choose the Right Effervescent Tablet Packaging Machine: Ένας πλήρης οδηγός αγοραστών

Selecting the ideal effervescent tablet packaging machine is crucial for pharmaceutical and nutraceutical producers. Αναβραστικά δισκία (like vitamin C or antacid tablets) are extremely moisture-sensitive, so packaging must ensure a reliable moisture barrier. This guide explains why effervescents need specialized packaging, compares common packaging formats (σωλήνες, φουσκάλες, sachets/strips), and outlines the 7 key factors to consider when buying a machine. You’ll also find helpful tables comparing machine types and an easy flowchart to guide your decision. Τελικά, see our FAQ and a no-pressure introduction to why Jinlu Packing’s equipment and service may be the right choice for your production needs.

What Makes Effervescent Tablets Different from Ordinary Tablets?

Effervescent tablets contain reactive acid-base chemistry that releases CO₂ when dissolved in water, making rapid delivery of nutrients or drugs. This is what creates the fizz, but it also means they are extremely moisture-sensitive. Στην πράξη, even trace humidity can prematurely trigger the reaction, soften tablets, or reduce potency. Για να αποτραπεί αυτό, effervescent products are manufactured and packaged under very low-humidity conditions (συχνά <20–25% RH).

Επί πλέον, effervescents are usually uncoated (to dissolve quickly), so there’s no protective film to block moisture. Their stability depends entirely on the packaging. Όπως σημειώνει ένας ειδικός, if moisture enters before use, “the reaction can start too soon” and ruin the product. Εν συντομία, effervescent tablets differ from ordinary pills in that packaging design must prioritize moisture and oxygen barriers above all else. The core goal is to keep the tablets completely dry and sealed – maintaining both integrity and shelf life.

Why Packaging Is Critical for Effervescent Tablets

Effervescent tablets’ unique chemistry makes packaging quality a matter of product quality. The main reasons good packaging is critical include:

• Moisture Protection: Όπως σημειώθηκε, effervescent tablets are πολύ υγροσκοπικός. Even a tiny amount of humidity can cause premature effervescence, tablet swelling, or loss of active ingredients. Για παράδειγμα, Xinfuda Packaging warns that “even a small amount of humidity can lead to premature reactions, reduced stability, or loss of active ingredients” in effervescent tablets. Αυτός είναι ο λόγος ανθεκτική στην υγρασία συσκευασία (tubes with desiccant caps or foil blisters) is essential.
• Shelf Life Extension: Superior barrier packaging dramatically extends shelf life. Για παράδειγμα, a standard thermoformed PVC blister might only protect a sensitive tablet for about 12 months in high-humidity climates, whereas an all-aluminum (Alu-Alu) blister can extend shelf life to 36 months or more. The near-zero moisture ingress of Alu-Alu foil vs. ordinary blisters provides a huge advantage in warm/humid zones. Επίσης, rigid tubes with desiccant stoppered caps create a micro-climate that keeps effervescents potent much longer.
• Ακεραιότητα προϊόντος: Proper packaging prevents physical and chemical degradation. A good ακεραιότητα σφραγίδας means tablets stay intact and uncontaminated. Pharmaceutical designers use tight-fitting caps or foils and even spiral desiccant inserts (filled with silica gel) to actively absorb any moisture entering the container. Για παράδειγμα, Jinlupacking highlights that spiral desiccant stoppers “contain silica-gel desiccant that keeps away light, υγρασία, and humidity”. These features keep the tablets dry, firm, and safe in transit and storage.
• Consumer Safety: Regulatory and customer concerns also play a role. Many effervescent products (π.χ.. βιταμίνες, OTC remedies) demand tamper-evident and child-resistant features. Blister packs inherently provide tamper evidence (you can see if a dose has been popped out), which “enhances consumer trust and product safety”. Bottles with sealed caps or shrink bands add another safety layer. Σε όλες τις περιπτώσεις, the packaging must meet pharmacopeial and FDA/EU guidelines for pharmaceutical closures to ensure no contamination or dosage error.

Συνοπτικά, selecting the right effervescent tablet packaging is not just about convenience or branding – it’s fundamentally about Προστασία υγρασίας, δραστικότητα, και συμμόρφωση. Robust packaging keeps effervescent tablets stable and effective until the very end of shelf life.

Common Packaging Formats for Effervescent Tablets

Effervescent tablets are typically sold in one of three primary packaging formats: σωλήνες (with caps), φουσκάλες (often Alu-Alu foil), or single-use strip/sachets. Each has advantages and trade-offs in moisture barrier, ευκολία, και κόστος.

Tube Packaging

Many effervescent products use rigid tubes or bottles (made of plastic, ποτήρι, or metal) with a screw or snap cap. Plastic tubes (PP or PE) are the most common for vitamins and supplements. These containers often include twist-off caps that are either moisture-proof or contain an inner silica-gel desiccant insert. The combination of the polymer tube and a desiccant cap provides excellent moisture protection (desiccant actively absorbs any humidity inside). Tubes typically provide strong protection against moisture, which is critical for these hydroscopic tablets.

Capacity and Filling: Tubes are usually filled with anywhere from 10 up to ~20 tablets each (depending on tablet size and tube height). Automatic tube filling machines count and load this many tablets per tube.

Convenience and Branding: Tubes are portable and consumer-friendly – easy to open one-handed – and offer plenty of label space. Τα πλεονεκτήματα περιλαμβάνουν φορητότητα, reclosability, and ample room for branding and instructions. Disadvantages are that they can be bulkier (larger packages and cartons) and usually carry fewer tablets per package than a full blister pack.

Συσκευασία Alu-Alu Blister

High-end effervescent tablets (especially in pharmaceuticals or export markets) often use Cold-Formed Alu-Alu blister packs. In an Alu-Alu blister, the cavity and the lidding are both aluminum foil (sometimes laminated to plastic). This creates a near-total barrier: no light, virtually no moisture or oxygen can penetrate. Jinlupacking describes Alu-Alu as the “gold standard” for hygroscopic drugs, achieving near-zero moisture vapor transmission. Στην πράξη, Alu-Alu blisters can extend shelf life to multiple years ακόμα και σε ζεστό, humid climates.

When used: Alu-Alu is common in Europe or regions where long shelf life is critical. It’s ideal for high-potency or moisture-sensitive formulas.

ανταλλάγματα: The drawback is cost and size. Alu-Alu foil is expensive, and cold-forming it requires slower mechanical processes. The resulting blister cards are often 30–50% larger than standard plastic blisters, which means bigger cartons and more shipping volume. The cost per dose can be 2–3× that of plastic blistering. So Alu-Alu is usually reserved for cases where its barrier benefits justify the expense.

Strip/Sachet Packaging

Πακέτα απογυμνώσεων (φακελάκια από αλουμινόχαρτο) are another option. These are continuous foil webs sealed on all sides into pouches. Ανταύγειες:

• Four-Side Sealed Packs: A strip packer feeds tablets between two foil webs and heat-seals them, then cuts into individual sachets. Each is a foil envelope.
• Portion Control & Φορητότητα: Σαν φουσκάλες, each pack contains a fixed number of tablets (often one or a small dose). Sachets are extremely portable (pocket-friendly) and often used for travel or single-dose items.
• Φράγμα υγρασίας: High-quality foil or laminate is used, giving good moisture protection (though typically not quite as high as Alu-Alu blister).
• Διακίνηση: Strip machines are slower than tube fillers. Για παράδειγμα, one model cuts 20–60 sachets/min. This is suitable for small or specialized batches rather than massive runs.
• Εξοπλισμός: ΕΝΑ μηχανή συσκευασίας ταινιών is essentially an HFFS (horizontal form-fill-seal) unit tailored for effervescents, often with dedusters and cutters. They include cGMP features and quick changeovers.

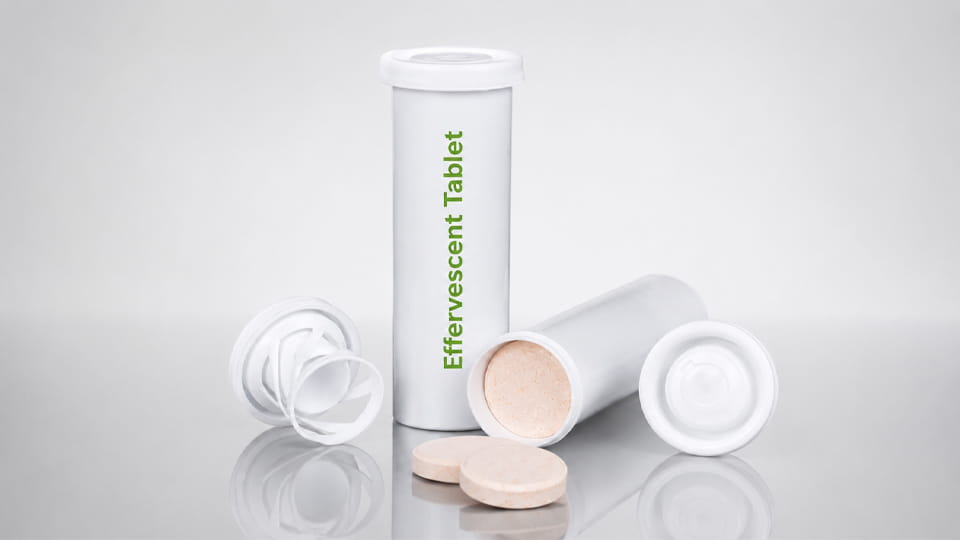

Εικόνα: Effervescent tablets are often packed in plastic tubes with desiccant-containing caps for strong moisture protection.

Types of Effervescent Tablet Packaging Machines

The core machinery for effervescent tablet packaging corresponds to the format chosen. The two main types of packaging machines are Tube Filling Machines (for tubes/bottles) και Μηχανές Συσκευασίας Κυψελών (for foil blisters). We also consider the fully integrated Packaging Line that ties together counting, πλήρωση, κάλυψη, τιτλοφόρηση, και χαρτοκιβώτιο.

Μηχανή πλήρωσης σωλήνων αναβράζουσας ταμπλέτας

ΕΝΑ tube filling machine (sometimes called a tablet bottle filling machine) automates the process of filling a rigid tube with tablets, adding a desiccant cap if needed, and sealing it. Τα βασικά χαρακτηριστικά περιλαμβάνουν:

• Tablet Feeding and Counting: Tablets are fed from a hopper or bowl, often through vibratory chutes and sensors that count them precisely. Machines commonly use photoelectric sensors to detect missing tablets. Jinlu’s tube filler, για παράδειγμα, uses high-precision sensors to monitor filling and can auto-reject empty or under-filled tubes.
• Tube Loading: Empty tubes are supplied by a bottle unscrambler or hopper and placed under the fill station. The machine aligns each tube for filling.
• Εισαγωγή ξηραντικού & Κάλυψη: If using desiccant caps, the machine automatically picks and screws on a silica-gel stopper after filling. Some machines include a desiccant-feeder mechanism for spiral caps.
• Cap Sealing: The cap is pressed or tightened to a specified torque. A good effervescent tube filler ensures a hermetic seal. Many have cap-presence checks and torque controls for seal integrity.
• Σύστημα απόρριψης: Fully automated fillers detect errors (π.χ.. λάθος μέτρηση, λείπει καπάκι) and reject faulty tubes on the fly, so only correctly filled packages advance.

Example – Jinlu JL-ZGJ-80Pro: This fully automatic effervescent tube filling machine handles large-diameter tablets. It performs sorting, αρίθμηση, φόρτωση, and capping at speeds up to 80 tubes per minute (≈4800 tubes/hr), με >99.98% ακρίβεια πλήρωσης. It meets cGMP standards and is built of stainless steel for cleanability. Such machines represent the higher-end of automatic tube fillers.

Modern tube fillers emphasize accuracy and reliability. They often include GMP-compliant design (SUS316L construction, enclosed systems) and rapid-change tooling for format switches. When evaluating a machine, look for proven counting accuracy (≥99.9%), servo drives for precise motion, and easy cleaning/access.

Effervescent Tablet Tube Packaging Line

Rather than a stand-alone filler, many manufacturers deploy an entire γραμμή συσκευασίας that integrates upstream and downstream equipment. A typical effervescent tablet packaging line might include:

• Tablet Counter or Press: Upstream tablet production can feed directly into the line.
• Tablet Deduster/Vibrator: Removes dust to avoid off-spec tablets.
• Μπουκάλι Unscrambler: Orients and feeds empty tubes/bottles in bulk.
• Αυτόματο μηχάνημα μέτρησης: Precisely counts tablets into feed chutes.
• Tube Filling & Μηχανισμός κάλυψης: As above – counts and loads tablets into tubes, adds desiccant and caps them.
• Αποξηραμένος εισερχόμενος (αν χωριστούν): Feeds spiral stoppers into the capping station.
• Μηχάνημα επισήμανσης: Applies printed labels to each filled tube.
• Μηχανή χαρτοκιβωτίου: Collects tubes into cartons or boxes.

Jinlu notes that our tube filler can be “combined with μηχανές πρέσας tablet, dedusters, και μηχανές χαρτοκιβωτίου” for a fully integrated line. Για παράδειγμα, the tube filler will automatically receive tablets from the upstream press and feed finished tubes to the downstream cartoner, minimizing manual handling.

By automating every step – counting, πλήρωση, κάλυψη, τιτλοφόρηση, cartoning – the packaging line boosts productivity and traceability. Sensors at each stage catch errors early, ensuring each carton leaves the line fully compliant.

Alu-Alu Blister Packing Machine

For Alu-Alu blister packaging, ένα μηχάνημα συσκευασίας φουσκάλου χρησιμοποιείται. These machines thermoform or cold-form cavities and seal tablets in blister cards. Βασικά σημεία:

• Blister Forming: Ταινίες υψηλού φραγμού (PVC/PVDC laminated or cold-form foil) are formed into cavities. Only specialized high-pressure machines can handle Alu cold-foil.
• Tablet Placement: Tablets are placed (manually or by pick-and-place robots) into the cavities. For effervescents, this usually happens in a dry room.
• Lidding/Sealing: A matching aluminum foil (PVDC or cold-form) is laminated or stamped onto the filled film. Alu-Alu machines cold-stamp a dual-foil to encase each tablet in foil.
• Παραγωγή: Modern blister lines can reach several thousand cavities per hour, though cold-form Alu lines run slower than PVC lines due to material constraints.

If choosing a blister packing line for effervescent tablets, one should ensure it is rated for high-barrier materials. The key selling point is moisture barrier performance, not speed. A cold-form Alu machine yields maximum protection (near-zero ingress) at the cost of throughput.

Tube Packaging vs. Συσκευασία Alu-Alu Blister

The choice between tubes (with desiccant caps) and Alu-Alu blister cards depends on product needs. The table below compares these formats on key factors:

Τραπέζι: Comparison of effervescent tube packaging (with desiccant cap) εναντίον. Συσκευασία κυψέλης Alu-Alu. Σημείωμα: Alu-Alu blisters provide an almost hermetic seal, whereas tubes rely on desiccant to maintain dryness.

Εν συντομία, σωλήνες (ή μπουκάλια) are a consumer-friendly format and perfectly adequate when combined with a desiccant. They are faster and cheaper to pack. Κυψέλες Alu-Alu are chosen when maximum barrier is required despite the cost – for example, for prescription-strength effervescents or in markets that demand 3-year shelf life.

Key Features to Look for in an Effervescent Tablet Packaging Machine

When evaluating packaging machinery for effervescent tablets, focus on these crucial features – they also tend to be the highest customer inquiries:

• Ταχύτητα συσκευασίας: Machines should match your required throughput. Speeds are often quoted in tubes or units per minute. Για παράδειγμα, a typical tube filler might run 60–80 tubes/min (≈3,600–4,800 tubes/hr). Larger machines can reach ~120 tubes/min or more. Choose a speed that aligns with your volume needs and downstream equipment. (Θυμάμαι, one tube often holds ~10–20 tablets, so 60 tubes/min is 36,000–72,000 tablets/hr.)
• Ακρίβεια μέτρησης: Since effervescents are dosage-critical, count accuracy must be extremely high – ideally >99.9%. Most modern machines use high-speed photoelectric counting or vibratory methods with pick-and-place mechanisms. Για παράδειγμα, Jinlu’s tube filler achieves 99.98% ακρίβεια. Miscounts mean rework, so prioritize machines with proven counting precision.
• Εισαγωγή ξηραντικού: Verify how the machine handles desiccant. Many effervescent lines use spiral desiccant stoppers containing silica gel. The machine should automatically sort and insert these into tubes. The feeding system needs to be reliable and jam-free. Some lines use an external desiccant inserter integrated with the capper. Ensure the design maintains the proper orientation and placement of each desiccant cap.
• Ακεραιότητα σφραγίδας: The final seal (cap or blister) must be air-tight. Check that the machine applies consistent closing torque or heat-seal pressure. Many tube fillers have a cap-compression station and a sensor to verify the cap is present and properly sealed. For blister machines, check vacuum or pressure sealing uniformity. Good machines allow adjustment of sealing pressure and line speed to achieve optimal leak-proofing.
• Materials and Cleanability: All product-contact parts should be FDA/USP-approved and easy to clean. SUS304 or SUS316L stainless steel is standard for frames and surfaces. Tubing and hopper materials (π.χ.. ΚΑΤΟΙΚΙΔΙΟ ΖΩΟ, PP) should be chemically inert. Look for machines with smooth, sanitary designs (no sharp crevices) and easy access panels for cleaning.
• Αυτοματοποίηση & Ελεγχος: A central PLC/ HMI is essential. It allows quick format changes, ρύθμιση ταχύτητας, and diagnostics. Features like automatic fault detection (π.χ.. “no tablet” or “no cap”) βελτίωση της απόδοσης. Jinlu’s fillers use PLC control and automatic alarms to stop the line on errors. A modern human-machine interface will speed up training and minimize operator error.
• Συμμόρφωση & Νομιμοποίηση: The machine should be GMP-compliant and come with validation documentation (Πρωτόκολλα IQ/OQ/PQ). FDA, CE, UL certificates add confidence. Για φαρμακευτική χρήση, ensure the vendor provides detailed manuals and service support.

Below is a comparison table summarizing material and packaging choices for moisture barrier performance:

Τραπέζι: Typical moisture barrier of various effervescent packaging. Even PP/PE tubes rely on the desiccant cap for near-zer εμπόδιο, while Alu-Alu foil is virtually impermeable.

Common Packaging Problems and Solutions

Even with the right equipment, issues can arise in effervescent packaging. Here are typical problems and how to fix them:

• Moisture Ingress: If tablets show signs of moisture (clumping, reduced fizz), check for leaks. Causes include loose caps, damaged liners, or permeable container walls. Διάλυμα: Verify cap torque and gasket integrity. Use high-barrier packaging (switch to PVDC or Alu foil if needed). Ensure desiccants are fresh and properly dosed. Test seal strength with vacuum or bubble leak tests.
• Broken Tablets: Effervescents can be fragile. If tablets are broken during packaging, the culprit may be too much mechanical pressure. Διάλυμα: Adjust infeed vibrators and chute gaps for gentler handling. If in blister, soften forming depth to ease removal. Ensure tablet hardness meets packaging needs (coating can help, εάν επιτρέπεται). Tube machines should not over-compress tablets when leveling.
• Counting Errors: If the count is off, sensors or feeders may be misaligned. Διάλυμα: Calibrate the photoelectric counters and check the vibration/feed tray (they should not double-feed). Regularly clean sensors of dust. Consider a higher-grade counting system (many lines use gravity or vibratory drop counters for consistency).
• Loose or Misaligned Caps: Occasionally a cap might not screw fully on. Διάλυμα: Adjust the capper head pressure or fill-volume so that the desiccant cap seats correctly. Check that the cap chute feeds caps uniformly. Some systems use vision sensors after capping to detect incomplete closures.

Proactive maintenance is key: keep all feed hoppers (δισκία, σωλήνες, καπάκια) clean and dry, replace worn parts (π.χ.. pan scrapers, star wheels) on schedule, and run trial batches when changing formats.

Recommended Effervescent Tablet Packaging Solution from Jinlu Packing

For a reliable effervescent packaging line, Jinlu Packing offers a one-stop solution. Τα βασικά συστατικά περιλαμβάνουν:

• Αυτόματο μηχάνημα μέτρησης: Μια μεγάλη ταχύτητα tablet counting and feeding system to ensure each tube starts with the right number of tablets. (See Jinlu’s Αυτόματο μηχάνημα μέτρησης.)
• Effervescent Tube Filling Machine: Jinlu’s Effervescent Tablet Tube Filling Machine integrates sorting, αρίθμηση, tube loading, desiccant capping, και σφράγιση. It reaches up to 80 μπουκάλια/λεπτό με >99.98% ακρίβεια.
• Μηχάνημα επισήμανσης: Μετά το γέμισμα, an automated Labeling Machine (π.χ.. JL-TBJ-120) applies product and lot labels at speeds up to 120 μπουκάλια/λεπτό.
• Μηχανή χαρτοκιβωτίου: Τελικά, tubes are placed into cartons by a Μηχανή χαρτοκιβωτίου. Jinlu’s cartoners handle up to 15,600 cartons per hour, and can pack tubes, blisters or sachets as needed.
• Complete Packaging Line: All of the above can be linked into a single effervescent tablet packaging line. The machines communicate seamlessly – for example, the counting/capping station automatically feeds directly into the infeed of the cartoner. This integrated design “improves production efficiency” and reduces manual intervention.

Each of these machines is built to pharmaceutical standards (FDA/CE compliant, SUS316L contact parts) and comes with documentation. By choosing a coordinated system, you ensure each step from tablet to carton is optimized for effervescent products.

Σύναψη

Επιλέγοντας το σωστό effervescent tablet packaging machine is about more than speed. It’s about protecting your tablets from moisture, ensuring product stability, and meeting regulatory standards. As we’ve discussed, effervescent formulas are highly sensitive, so every aspect of the packaging – material, μηχανή, and process – must minimize humidity and maintain a tight seal.

Με πρακτικούς όρους, that means picking a machine (or line) that offers robust barrier handling (desiccant caps or foil), precise operations (accurate counting and capping), and full compliance (GMP design and documentation). Automated tube filling lines (with counting, τιτλοφόρηση, χαρτοκιβώτιο) are generally the workhorses of the effervescent industry today.

Looking for a reliable effervescent tablet packaging solution? Επικοινωνήστε με την Jinlu Packing σήμερα for expert guidance and a tailored quote. Our team can help you pick the right machine and ensure it meets global compliance standards – all backed by full warranties and technical support.

FAQs About Effervescent Tablet Packaging Machine

Αναφορές：
1.The Effect of Environmental Moisture and Temperature on the Physical Stability of Effervescent Tablets in Foil Laminate Packages Containing Minute Imperfections —— tandfonline.com
2.Packaging of Effervescent Tablets —— pharmapproach.com
3.High Barrier Aluminum Foil for Effervescent Tablet Packaging —— al-foils
4.Οι επιπτώσεις της συσκευασίας στη σταθερότητα μιας ευαίσθητης στην υγρασία ένωσης —— ScienceDirect
5.Potassium carbonate as a desiccant in effervescent tablets —— ScienceDirect
6.Effervescent tablets go ‘Airborne’ in tubes —— packworld
7.Recent advances in the technology of effervescent tablets: lessons learned and future perspectives —— ScienceDirect
