Perkenalan: The Physics of High-Tonnage LargeTablet Press

Manufacturing standard 10mm pharmaceutical tablets is a well-documented process. Namun, when production scales up to large-format items—such as 60mm veterinary boluses, chemical blocks, or detergent pods—the physics of powder compression undergo a radical transformation. Standard equipment simply lacks the kinetic force and structural integrity required, leading to catastrophic tool failure, severe capping, and unacceptable weight variations.

To conquer these extreme manufacturing challenges, engineers require specialized industrial solutions. Enter the High Pressure Large Tablet Press Machine, a formidable asset designed specifically to exert massive tonnage while maintaining micron-level precision.

In this comprehensive technical guide, we will explore the underlying physics that make large-format tablet compression so difficult. Lebih-lebih lagi, we will dissect the engineering behind the 400kN Large Tablet Press Machine by Jinlu Packing, analyzing how its robust nodular cast iron architecture and modular tooling solve the industry’s most persistent large-tablet bottlenecks.

Bagian 1: Tantangan Teknik: Why Are Large Tablets Harder to Press?

When transitioning from a standard Tablet Compression Machine to a large-format press, operators often encounter immediate quality control failures. Why does this happen? The answer lies in thermodynamics and fluid mechanics.

1. The Air Entrapment Crisis:Powder consists of solid particles and interstitial air. In a standard 10mm die, air escapes quickly during compression. In a large 60mm die cavity, the volume of trapped air is exponentially higher. If compressed too rapidly, this air becomes highly pressurized within the tablet core. Upon ejection, the air expands, causing the tablet to fracture or split completely (known as capping and lamination).
2. Powder Segregation:Large die cavities require a substantial volume of raw material (often multi-component blends like those used in a Laundry Large Tablet Press Machine). As the powder drops into a deep die, heavier particles tend to fall faster than lighter ones, causing segregation. This results in uneven API distribution and severe weight fluctuations.
3. Inadequate Plastic Deformation:Large tablets require the powder particles to undergo extended “plastic deformation” (permanently changing shape and locking together). Standard machines cannot maintain peak pressure long enough to achieve this across a large surface area.

Critical Parameters for Large Tablet Production

To successfully operate a Salt Tablet Machine, operators must master several critical parameters:

• Pre-Compression Force:The initial force used to gently squeeze out interstitial air before the main hit.
• Main Compression Force:The peak tonnage required to bind the particles.
• Waktu Tinggal:The absolute most critical parameter for large tablets; it is the duration the punch head remains under maximum pressure.
• Filling Depth:Precisely controlling the volume of powder entering the massive die.

Bagian 2: 5 Core Engineering Breakthroughs of the 400kN High Pressure Tablet Press Machine

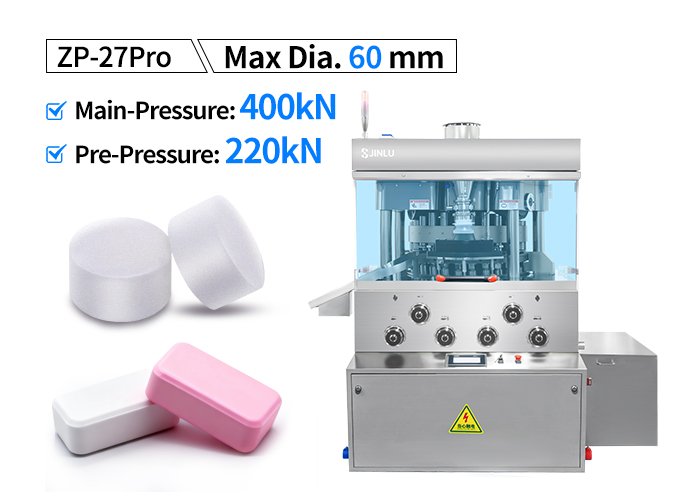

To overcome the physics limitations of standard presses, Jinlu Packing has engineered a High Pressure Tablet Machine that redefines industrial capability. It boasts a maximum tablet diameter of 60mm, a maximum thickness of 20mm, and an impressive output of up to 38,000 Potongan per jam.

Here are the five defining technological upgrades that make this possible.

1. Brute Force Meets Precision: 400kN Main & 220kN Pre-Pressure

When pressing a 60mm tablet, surface area dictates that standard 80kN or 100kN machines will barely scratch the surface, resulting in crumbly, fragile blocks.

Our High Pressure Salt Tablet Press Machine is engineered for extreme tonnage. It delivers a staggering 400kN (approx. 40 tons) of main compression force, backed by a massive 220kN of pre-compression force.

• The Scientific Benefit:The 220kN pre-pressure effectively performs the crucial de-aeration phase, pushing out massive volumes of trapped air. The 400kN main pressure then delivers the definitive crushing force required to forge dense, rock-solid tablets, making it the ultimate Veterinary Tablet Press Machine for dense animal health boluses.

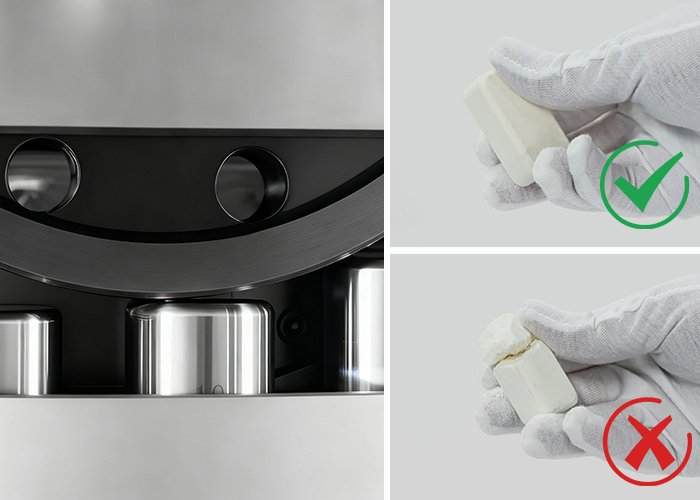

2. Extended Dwell Time Architecture: Zero Capping, Zero Lamination

As established, applying 400kN of force too quickly will shatter a large tablet. To solve this, our engineers implemented an advanced Pressure-Holding Design (Dwell Time Extension).

• The Mechanics:By optimizing the geometry of the upper and lower pressure rollers, the flat contact area on the punch heads is extended.
• The Scientific Benefit:This ensures the powder bed remains under peak 400kN compression for a fraction of a second longer. This extended dwell time allows the material to fully achieve plastic deformation and structural binding. Hasilnya? A complete elimination of capping and lamination, even when pressing difficult, elastic chemical compounds.

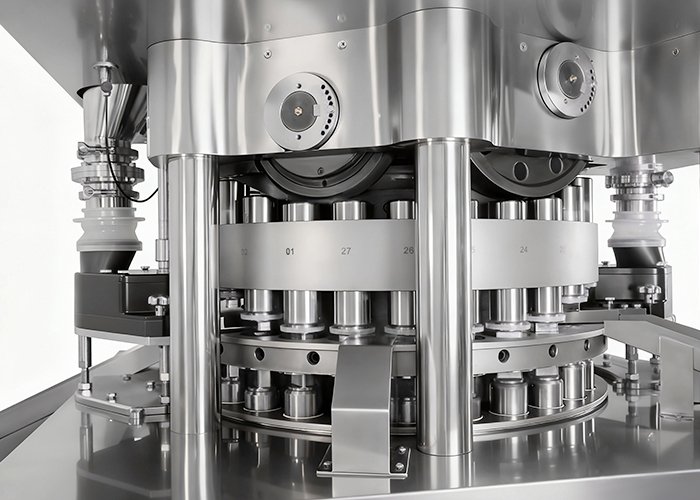

3. Menara besi cor nodular: Unyielding Structural Integrity

You cannot safely apply 400kN of force to a standard steel turret; the metal fatigue would eventually cause catastrophic fracturing.

• The Metallurgy:The heart of this Salt Large Tablet Press Machine is its turret, forged from premium Nodular Cast Iron (Ductile Iron). Unlike standard cast iron, which is brittle, nodular iron contains spherical graphite structures.
• The Scientific Benefit:These nodules act as microscopic shock absorbers. They give the turret immense tensile strength, superior impact resistance, and extreme hardness. This ensures the machine can withstand the brutal, continuous pounding of 40-ton impacts 24/7 without warping or suffering micro-abrasions.

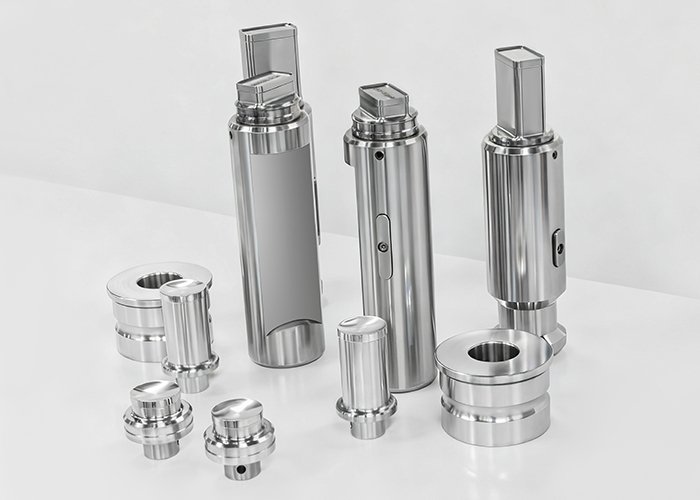

4. Modular & Split Tooling: Slashing Operational Costs

Standard punch tooling for 60mm tablets is incredibly heavy, mahal, and difficult to handle during changeovers.

• The Innovation:We utilize a Split and Modular Tooling System. Instead of a massive, single-piece solid steel punch, the tooling is divided into a standardized punch body and an interchangeable punch tip (head).
• The Economic Benefit:When you need to change the tablet shape or size, or if a punch tip wears out, you do not need to replace the entire heavy, expensive punch assembly. You only replace the specific modular punch head. This dramatically lowers the lifetime cost of tooling replacement and makes physical changeovers much safer and faster for your operators.

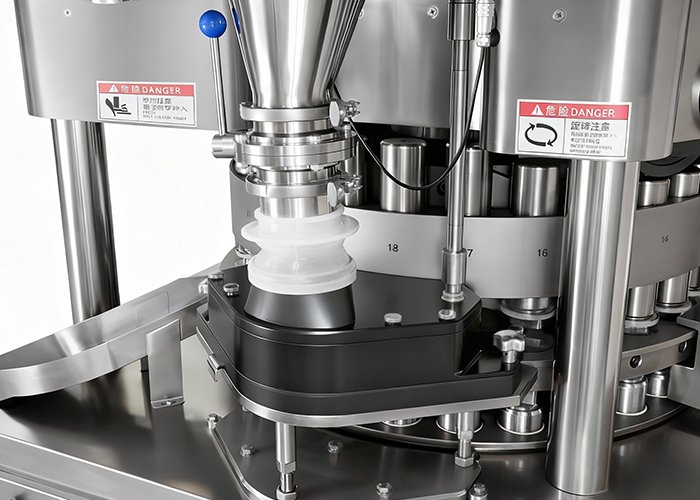

5. Dual-Layer, 3-Impeller Force Feeder: Guaranteed Weight Stability

Filling a 60mm diameter by 20mm deep die cavity rapidly and evenly is practically impossible with standard gravity feeders.

• The Solution:This Salt Tablet Press Machine is equipped with a state-of-the-art Dual-Layer, Three-Impeller Forced Feeding System.
• The Scientific Benefit:The multi-tiered impellers actively drive the powder down into the massive die cavities under mechanical pressure. This aggressive agitation completely eradicates material segregation, ensuring that fine powders and heavy granules are perfectly mixed as they enter the die. The result is absolute uniformity in filling, ensuring your heavy tablets maintain strict weight stability batch after batch.

Bagian 3: Industrial Applications and Workflow

Because of its immense power and specialized feeder, this High Pressure Tablet Press Machine is not limited to pharmaceuticals. It is a highly versatile workhorse across multiple heavy industries.

Primary Applications:

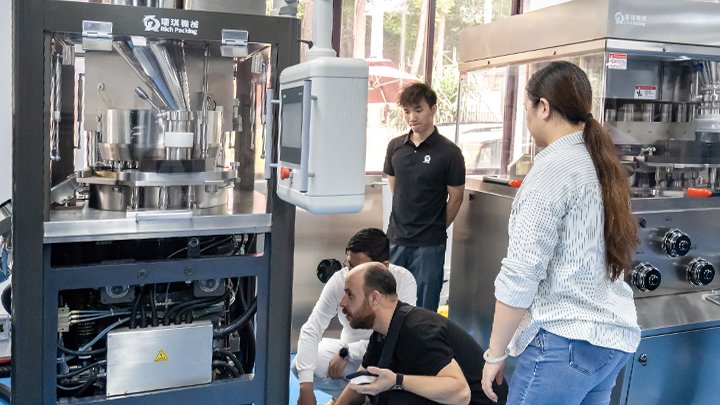

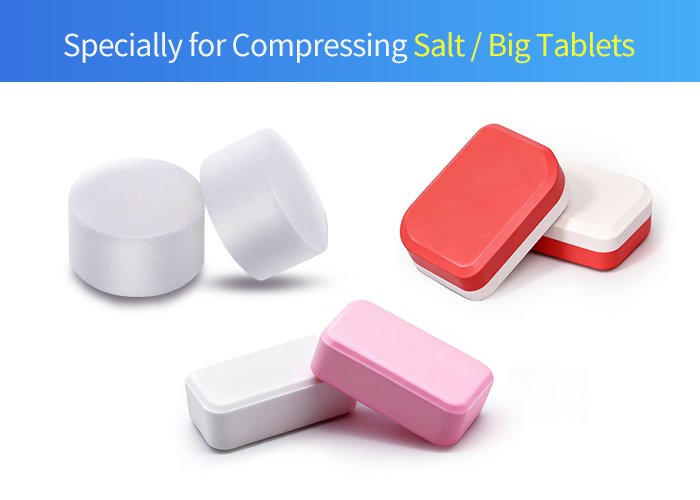

• Chemical Industry:Perfect as a Dishwasher Tablet Press Machine, water purification blocks, and swimming pool chlorine tablets (hypochlorite).
• Pertanian & Veterinary:Manufacturing large salt licks, fertilizer blocks, and massive veterinary boluses.
• Home Care:Acting as a high-yield Laundry Tablet Press Machine for bi-layer or tri-layer detergent pods.

The Operational Workflow

1. Material Induction:Bulk powder is loaded into the sealed hopper, flowing down to the dual-layer force feeder.
2. Forced Die Filling:The 3-impeller system aggressively packs the deep 60mm die cavities, ensuring no void spaces.
3. De-Aeration (Pra-kompresi):The 220kN pre-pressure roller gently but firmly expels all trapped air from the powder bed.
4. Consolidation (Kompresi utama):The 400kN main roller applies peak tonnage. The extended dwell time locks the particles together into a solid 20mm thick matrix.
5. Penyemburan:The heavy-duty ejection cam smoothly pushes the massive tablet out of the die, ready for downstream packaging.

Kesimpulan: Stop Compromising on Large Format Production

Attempting to manufacture 60mm industrial or veterinary tablets on underpowered equipment is a recipe for broken tooling, wasted raw materials, and endless operator frustration.

The 400kN Large Tablet Press Machine for salt by Jinlu Packing is the definitive engineering answer to these challenges. By combining brute force, extended dwell time, a virtually indestructible nodular cast iron turret, and intelligent modular tooling, this machine guarantees maximum yield with zero defects.

If you are ready to stabilize your large-tablet production and permanently eliminate capping and weight variation, contact the technical engineering team at Jinlu Packing today to secure your custom quotation.
